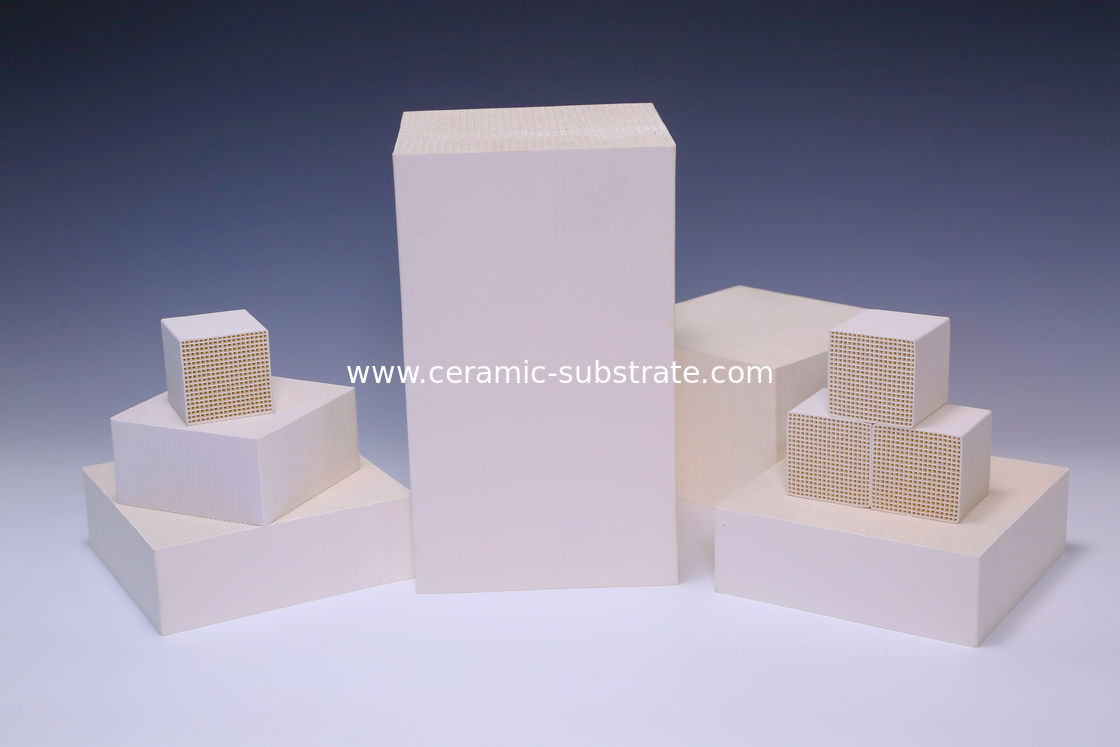

Honeycomb Ceramic White SiO2 MgO For Industrial VOC
Al2O3 Honeycomb Ceramic
,Industrial VOC Honeycomb Ceramic
,SiO2 MgO Ceramic Catalyst Carrier
Catalyst Honeycomb Ceramic Substrate White For Industrial VOC
1.Product use
After coated with catalyst, the product is widely applied in organic waste gas purification, heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification, NOx purification system, garbage incineration and harmful gas purification treatment, etc.
2.Overall dimensions standards
| Item | Standard values | Tolerance | Remark | |
| Overall dimensions | Length | 150MM | ±1.5MM | |
| Width | 150MM | ±1.5MM | ||
| Height | 50-100MM | ±1.0MM | ||
| 101-300MM | ±1%MM*height | |||
| Perpendicularity | Height | 50-100MM | ≤1MM | |
| 101-300MM | ≤1%Height | |||
| Parallelism | Height | 50-100MM | ≤1MM | |
| 101-300MM | ≤1%height |
| Item |
Standard |
Test |
||
|
chemical component |
Al2O3 | 35.2%±1% |
Chemical titration |
|
| SiO2 | 50.9%±1% | |||
| MgO | 13.9%±1% | |||
|
Cordierite main crystalline |
≥90% | X-ray diffraction | ||
| RT Mpa | AAxis | ≥15 Mpa |
universal material |
|
| BBxis | ≥2 Mpa | |||
| water absorption | 23%-27% | Gravimetric method | ||
| softening temperature | ≥1320℃ | high-temperature electric resistance furnace | ||
| CET(800℃) | ≤1.6*10-6/℃ | thermal dilatometer | ||
3.Specifications
| Cell density (CPSI):7～400 | ||||
|
Item |
(mm) Sectional Dimension |
(mm2) Area of Section |
Shape of Section |
(mm) Height |
| 1 | 50×50 | 2500 | |
The height can be designed by customer |
| 2 | 50×50 | 2500 | |
|
| 3 | 100x100 | 10000 | |
|
| 4 | 150x150 | 22500 | ||
REMARK: The SIZE can be designed by customer
4.Competitive Advantage
● Large Surface Area
● Low thermal expansion coefficient
● Good thermal shock and thermal shock performance
● Good corrosion resistant performance
