Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    • Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters
    • Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters
    • Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters
    • Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters
    • Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters
  • Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    Product Details:

    Place of Origin: China.Yixing
    Brand Name: Yuxing
    Certification: ISO9001 TS/16949

    Payment & Shipping Terms:

    Minimum Order Quantity: NO
    Packaging Details: Standard export packing
    Delivery Time: 5 work days
    Payment Terms: T/T, L/C
    Supply Ability: 6million liter/year
    Contact Now
    Detailed Product Description
    Cells Density:: 100~600 CPSI Material:: Cordierite
    Size:: Customize Color:: White
    Name:: Cordierite Substrate|cordierite Honeycomb Ceramic|honeycomb Ceramic Substrate Shape:: Oval|racetrack
    Usage:: Car Catalytic Converter

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters





    Description:



    After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.

    Benefits of Products:

    ● Thin wall thickness

    ● Low pressure drop

    ● High surface area

    ● Height compressive strength

    ● Low thermal expansion coefficient

    ● Good thermal impact resistance and thermal shock resistance

    ● Excellent compatibility with various active composition in catalyst

    ●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.





    1.Product use

     After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.



    2.Overall dimensions standards

    Item

    Standard value

    Tolerance range

    Remark

    wall thickness

    0.17MM

    +0.03MM

    -0.02MM



    density scope

    440g/L

    ±60g/L



    Outside dimension

    ≤100MM

    ±1MM



    >100MM

    ±1%



    Perpendicularity

     ≤100MM

    ≤1%height



    Parallelism

     >100MM

    ≤1%height





    Physical and chemical properties



    Item

    Standard value

    Inspection Method

    chemical components

    Al2O3

    35.2±1%

    Chemical analysis

    SiO2

    50.9±1%

    MgO

    13.9±1%

    Cordierite Crystal phase

    ≥90%

    X-ray diffraction techniques

    Compressive

    strength

    AA xis

    ≥15 Mpa

    Compressive strength technique

    BA xis

    ≥2 Mpa

    CA xis

    ≥0.15 Mpa

    Water absorption

    20-26%



    Weighting methord

    Softening point

    ≥1400

    High temperature oven

    CTE(800℃)

    ≤1.2*10-6/℃

    Netzsch dil 402  PC

    Thermal shock resistance

    550℃three times(air cool)

    Muffle furnace







    Specifications



    Cell density (CPSI):100~600



    Item

    (mm)

    Sectional Dimension

    (mm2)

    Area of Section



    Shape of Section

    (mm)

    Height

    1

    Φ76.2

    4560

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    ≤200

    The height can be designed by customer

    (The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

    152.4mm(6”).

    2

    Φ83

    5410

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    3

    Φ93

    6793

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    4

    Φ97

    7390

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    5

    Φ101.6

    8107

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    6

    Φ103

    8332

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    7

    Φ105.7

    8775

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    8

    Φ118.4

    11010

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    9

    Φ144

    16286

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    10

    80x57(R21.5)

    3546

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    11

    99.5x68.1(R33.6)

    5758

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    12

    120.6x80(R39.6)

    8227

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    13

    144x68(R28.4)

    8194

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    14

    144.3x68.1(R28.4)

    8606

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    15

    144.8x81.3(R37)

    9922

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    16

    147x95(R36.6)

    11010

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    17

    148x84(R38)

    10438

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    18

    169.7x80.8(R37.2)

    11865

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    19

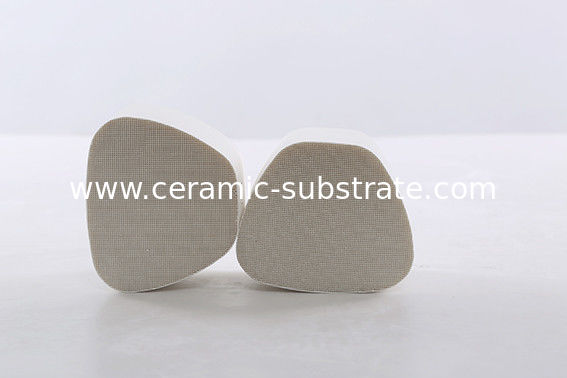

    Triangle

    143.5×84

    9108

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    20

    Trapezium 112.2×92×152.4

    8788

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    21

    Trapezium

    122.3x104.4

    10336

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    22

    Rectangle

    119.5x99.5

    10529

    Cylindrical Honeycomb Ceramic Support Customize For Catalytic Converters

    23

    Special

    114x105

    9612






    REMARK: The SIZE can be designed by customer





    Competitive Advantage:



    ● Thin wall thickness

    ● Low pressure drop

    ● High surface area

    ● Height compressive strength

    ● Low thermal expansion coefficient

    ● Good thermal shock resistance

    ● Excellent compatibility with various active composition in catalyst

    ●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.
