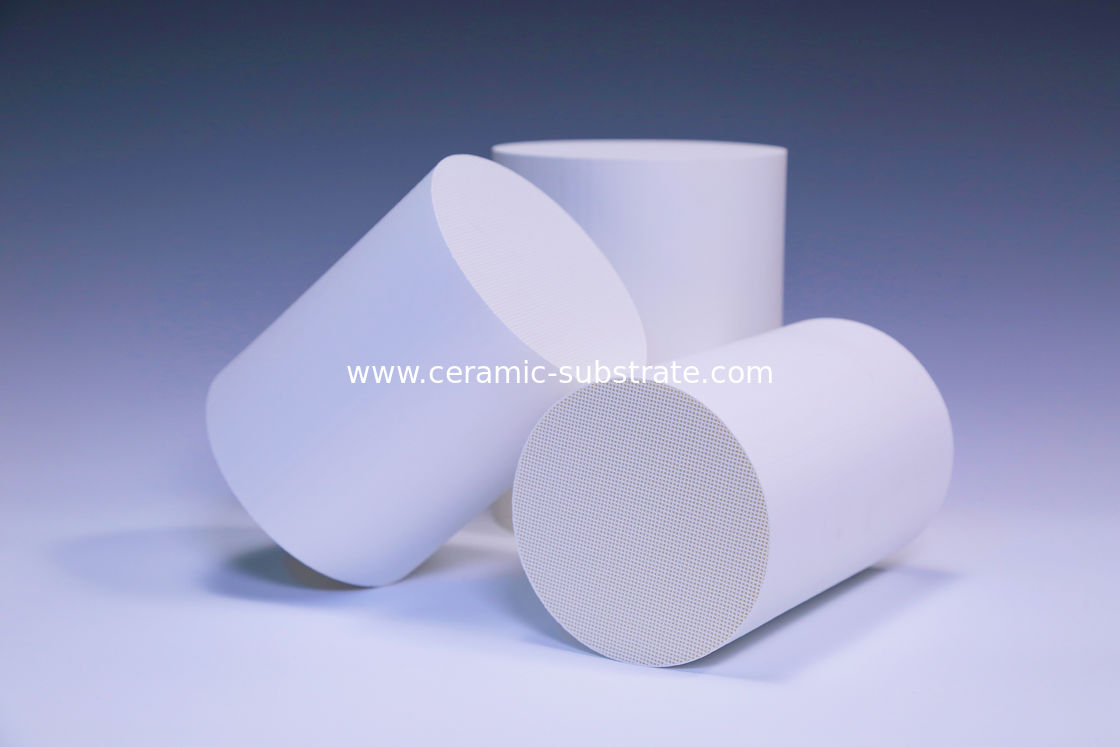

High Temperature Ceramic Honeycomb Catalyst Substrate

Category:
Honeycomb Ceramic
Payment Method:
T/T, L/C
Specifications
Cells Density::
100~600 CPSI
Material::
Cordierite
Size::
Customize
Color::
Ivory
Name::
Catalyst Substrates|catalyst Supports|ceramic Honeycomb
Shape::
Round|oval
Usage::
3 Way Catalytic Converters
High Light:

ceramic catalytic converter

,

Ceramic catalyst carrier

,

Round Honeycomb Ceramic Substrate

Introduction

High Temperature Ceramic Honeycomb Catalyst Substrate


2.

1.Product use



     After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.



2.Overall dimensions standards



Item

Standard value

Tolerance range

Remark

wall thickness

0.17MM

+0.03MM

-0.02MM



density scope

440g/L

±60g/L



Outside dimension

≤100MM

±1MM



>100MM

±1%



Perpendicularity

 ≤100MM

≤1%height



Parallelism

 >100MM

≤1%height





Physical and chemical properties

Item

Standard value

Inspection Method

chemical components

Al2O3

35.2±1%

Chemical analysis

SiO2

50.9±1%

MgO

13.9±1%

Cordierite Crystal phase

≥90%

X-ray diffraction techniques

Compressive

strength

AA xis

≥15 Mpa

Compressive strength technique

BA xis

≥2 Mpa

CA xis

≥0.15 Mpa

Water absorption

20-26%



Weighting methord

Softening point

≥1400

High temperature oven

CTE(800℃)

≤1.2*10-6/℃

Netzsch dil 402  PC

Thermal shock resistance

550℃three times(air cool)

Muffle furnace



Description:

After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.

Benefits of Products:

● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal impact resistance and thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.



Applications:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.





Specifications



Cell density (CPSI):100~600



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

Φ76.2

4560

High Temperature Ceramic Honeycomb Catalyst Substrate

≤200

The height can be designed by customer

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

Φ83

5410

High Temperature Ceramic Honeycomb Catalyst Substrate

3

Φ93

6793

High Temperature Ceramic Honeycomb Catalyst Substrate

4

Φ97

7390

High Temperature Ceramic Honeycomb Catalyst Substrate

5

Φ101.6

8107

High Temperature Ceramic Honeycomb Catalyst Substrate

6

Φ103

8332

High Temperature Ceramic Honeycomb Catalyst Substrate

7

Φ105.7

8775

High Temperature Ceramic Honeycomb Catalyst Substrate

8

Φ118.4

11010

High Temperature Ceramic Honeycomb Catalyst Substrate

9

Φ144

16286

High Temperature Ceramic Honeycomb Catalyst Substrate

10

80x57(R21.5)

3546

High Temperature Ceramic Honeycomb Catalyst Substrate

11

99.5x68.1(R33.6)

5758

High Temperature Ceramic Honeycomb Catalyst Substrate

12

120.6x80(R39.6)

8227

High Temperature Ceramic Honeycomb Catalyst Substrate

13

144x68(R28.4)

8194

High Temperature Ceramic Honeycomb Catalyst Substrate

14

144.3x68.1(R28.4)

8606

High Temperature Ceramic Honeycomb Catalyst Substrate

15

144.8x81.3(R37)

9922

High Temperature Ceramic Honeycomb Catalyst Substrate

16

147x95(R36.6)

11010

High Temperature Ceramic Honeycomb Catalyst Substrate

17

148x84(R38)

10438

High Temperature Ceramic Honeycomb Catalyst Substrate

18

169.7x80.8(R37.2)

11865

High Temperature Ceramic Honeycomb Catalyst Substrate

19

Triangle

143.5×84

9108

High Temperature Ceramic Honeycomb Catalyst Substrate

20

Trapezium 112.2×92×152.4

8788

High Temperature Ceramic Honeycomb Catalyst Substrate

21

Trapezium

122.3x104.4

10336

High Temperature Ceramic Honeycomb Catalyst Substrate

22

Rectangle

119.5x99.5

10529

High Temperature Ceramic Honeycomb Catalyst Substrate

23

Special

114x105

9612







REMARK: The SIZE can be designed by customer





Competitive Advantage:



● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.
