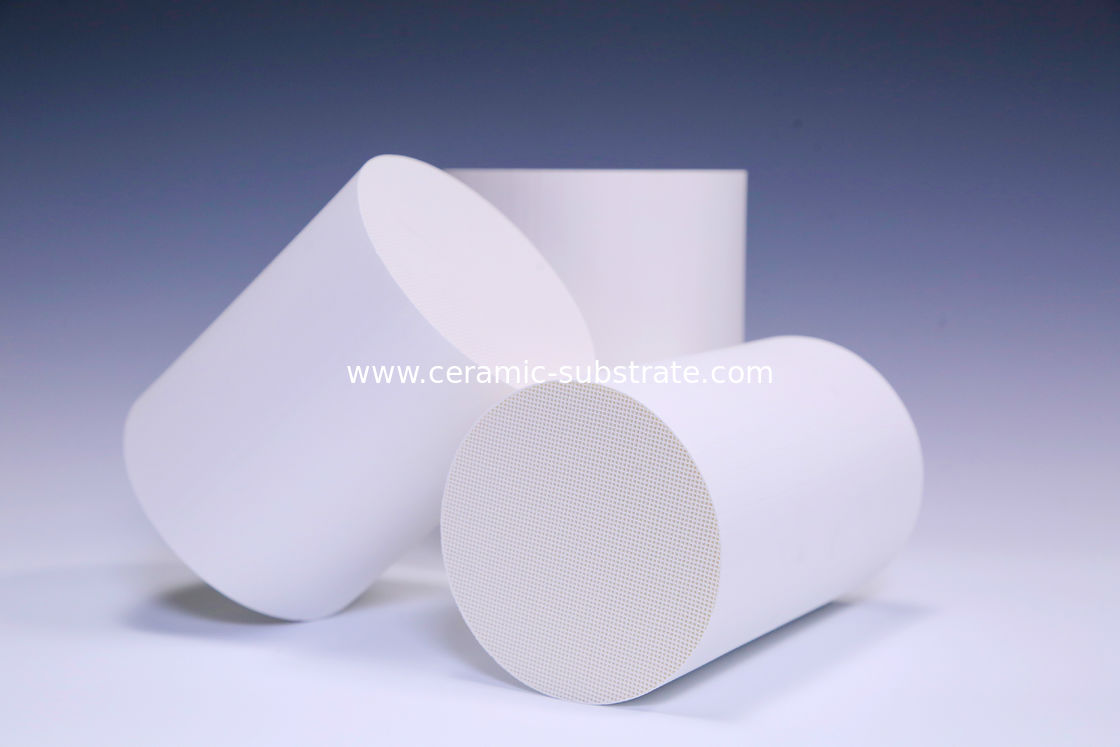

Cellular Ceramic Substrates With Three way Catalytic

Category:
Honeycomb Ceramic
Payment Method:
T/T, L/C
Specifications
Cells Density::
100~600 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Cordierite Honeycomb Ceramic|ceramic Honeycomb
Shape::
Round|squareness
Usage::
Thermal Storage
High Light:

ceramic catalytic converter

,

ceramic catalyst support

,

Cellular Ceramic Substrates

Introduction

Cellular Ceramic Substrates With Three way Catalytic





Description:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.

Benefits of Products:

● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal impact resistance and thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.





2.   1.Product use

 After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.



2.Overall dimensions standards



Physical and chemical properties



Item

Standard value

Inspection Method

chemical components

Al2O3

35.2±1%

Chemical analysis

SiO2

50.9±1%

MgO

13.9±1%

Cordierite Crystal phase

≥90%

X-ray diffraction techniques

Compressive

strength

AA xis

≥15 Mpa

Compressive strength technique

BA xis

≥2 Mpa

CA xis

≥0.15 Mpa

Water absorption

20-26%



Weighting methord

Softening point

≥1400

High temperature oven

CTE(800℃)

≤1.2*10-6/℃

Netzsch dil 402  PC

Thermal shock resistance

550℃three times(air cool)

Muffle furnace





Applications:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.





Specifications:



Cell density (CPSI):100~600



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

Φ76.2

4560

Cellular Ceramic Substrates With Three way Catalytic

≤200

The height can be designed by customer

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

Φ83

5410

Cellular Ceramic Substrates With Three way Catalytic

3

Φ93

6793

Cellular Ceramic Substrates With Three way Catalytic

4

Φ97

7390

Cellular Ceramic Substrates With Three way Catalytic

5

Φ101.6

8107

Cellular Ceramic Substrates With Three way Catalytic

6

Φ103

8332

Cellular Ceramic Substrates With Three way Catalytic

7

Φ105.7

8775

Cellular Ceramic Substrates With Three way Catalytic

8

Φ118.4

11010

Cellular Ceramic Substrates With Three way Catalytic

9

Φ144

16286

Cellular Ceramic Substrates With Three way Catalytic

10

80x57(R21.5)

3546

Cellular Ceramic Substrates With Three way Catalytic

11

99.5x68.1(R33.6)

5758

Cellular Ceramic Substrates With Three way Catalytic

12

120.6x80(R39.6)

8227

Cellular Ceramic Substrates With Three way Catalytic

13

144x68(R28.4)

8194

Cellular Ceramic Substrates With Three way Catalytic

14

144.3x68.1(R28.4)

8606

Cellular Ceramic Substrates With Three way Catalytic

15

144.8x81.3(R37)

9922

Cellular Ceramic Substrates With Three way Catalytic

16

147x95(R36.6)

11010

Cellular Ceramic Substrates With Three way Catalytic

17

148x84(R38)

10438

Cellular Ceramic Substrates With Three way Catalytic

18

169.7x80.8(R37.2)

11865

Cellular Ceramic Substrates With Three way Catalytic

19

Triangle

143.5×84

9108

Cellular Ceramic Substrates With Three way Catalytic

20

Trapezium 112.2×92×152.4

8788

Cellular Ceramic Substrates With Three way Catalytic

21

Trapezium

122.3x104.4

10336

Cellular Ceramic Substrates With Three way Catalytic

22

Rectangle

119.5x99.5

10529

Cellular Ceramic Substrates With Three way Catalytic

23

Special

114x105

9612







REMARK: The SIZE can be designed by customer





Competitive Advantage:



● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.
