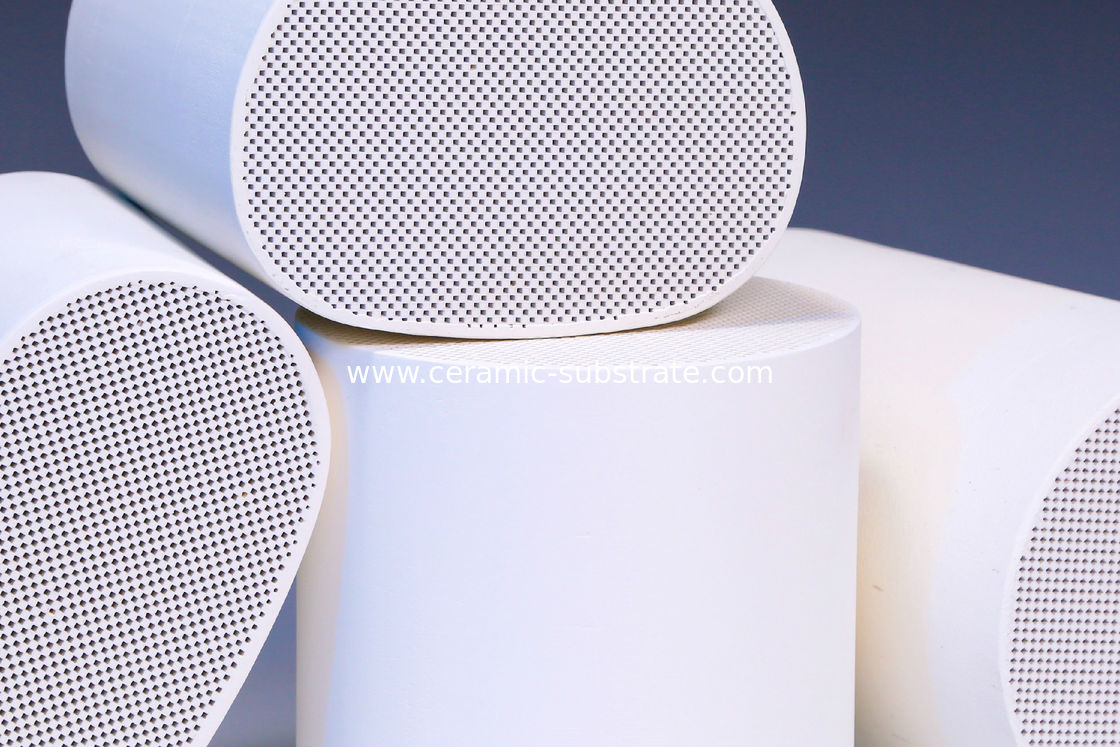

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

Category:
Diesel Particulate Filter
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 - 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
Ivory
Name::
Cellular Ceramic|cordierite Honeycomb Ceramic|ceramic Honeycomb
Shape::
Round
Usage::
Car Catalytic Converter
High Light:

dpf diesel particulate filter

,

ceramic disc filter

,

Automobile Cellular Diesel Particulate Filter

Introduction

Honeycomb Ceramic Diesel Particulate Filter For Automobile



2.  Product use



 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



Overall dimensions standards



Item



Standard  value

Test methods

Wall thinkness

100CPSI

0.46MM±0.04

vernier caliper

200CPSI

0.36MM±0.04

vernier caliper

Overall

dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%height

vernier caliper

hole

density

(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% intact

Bright light perspective

internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient





Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car



The height can be designed by customer

2

127(5”)

12667

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

3

144(5.66”)

16286

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

4

150(5.9”)

17671

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

5

190(7.5”)

28352

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

6

228(9”)

40828

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

7

240(9.5”)

45238

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

8

267(10.5”)

55990

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

9

286(11.25”)

64242

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

10

305(12”)

73061

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

11

330(13”)

85529

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

12

381(15”)

114009.00

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

13

457(18”)

164029.00

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

14

144.8x81.3

9921.16

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

15

144x116

13366.67

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

16

188x103

16338

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

17

Trapezium 130x100

10530

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

18

203.3x97

17059

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

19

191.8×95.8

14698

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

20

190×134

22160

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

21

145×118

14120

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

22

154.9×127

15771.65

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

23

207.3×101.4

17753.25

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car

24

207.4x100.4

17920

Automobile Cellular Diesel Particulate Filter Honeycomb Ceramic For Car





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient
