Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

Category:
Diesel Particulate Filter
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 - 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Catalyst Supports|honeycomb Ceramics|ceramic Substrates
Shape::
Round
Usage::
Car Catalytic Converter
High Light:

ceramic membrane filters

,

dpf diesel particulate filter

,

wall flow Diesel Particulate Filter

Introduction

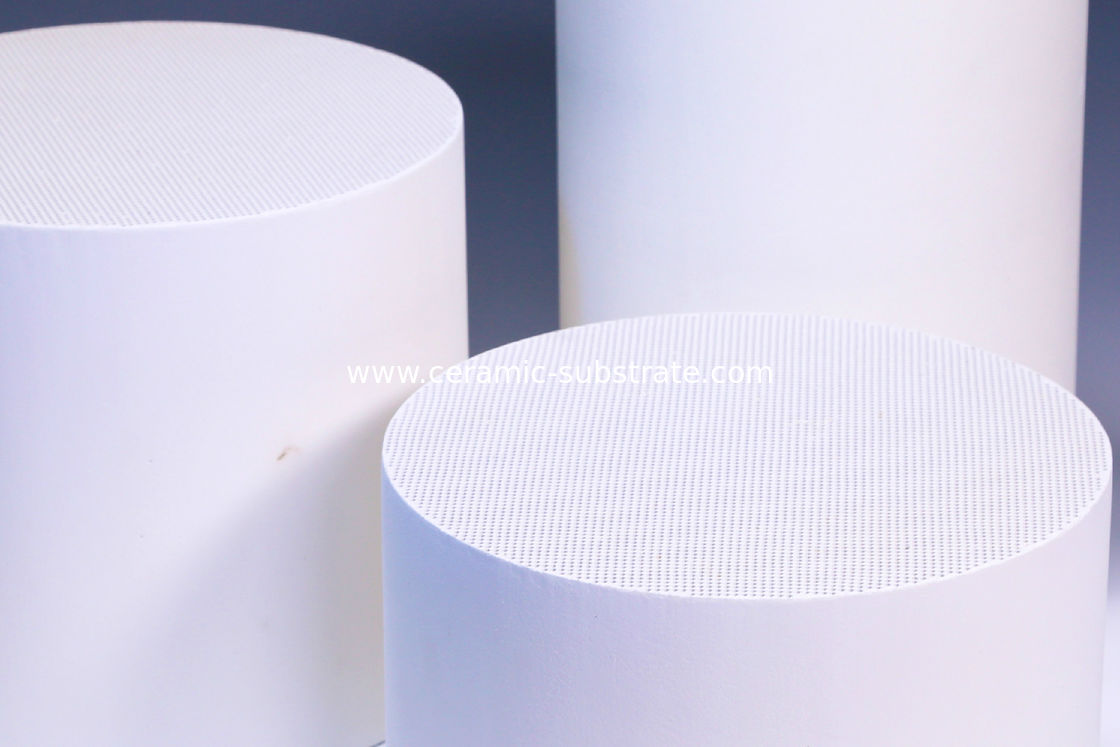

Wall Flow Diesel Particulate Filter For Catalytic Converter


2.   1.Product use





This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



2.Overall dimensions standards



Item



Standard  value

Test methods

Wall thinkness

100CPSI

0.46MM±0.04

vernier caliper

200CPSI

0.36MM±0.04

vernier caliper

Overall

dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%height

vernier caliper

hole

density

(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% intact

Bright light perspective

internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:





This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



Benefits of Products:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

 ● Low thermal expansion coefficient





Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier









The height can be designed by customer

2

127(5”)

12667

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

3

144(5.66”)

16286

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

4

150(5.9”)

17671

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

5

190(7.5”)

28352

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

6

228(9”)

40828

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

7

240(9.5”)

45238

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

8

267(10.5”)

55990

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

9

286(11.25”)

64242

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

10

305(12”)

73061

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

11

330(13”)

85529

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

12

381(15”)

114009.00

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

13

457(18”)

164029.00

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

14

144.8x81.3

9921.16

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

15

144x116

13366.67

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

16

188x103

16338

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

17

Trapezium 130x100

10530

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

18

203.3x97

17059

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

19

191.8×95.8

14698

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

20

190×134

22160

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

21

145×118

14120

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

22

154.9×127

15771.65

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

23

207.3×101.4

17753.25

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier

24

207.4x100.4

17920

Catalytic Converter Diesel Particulate Filter Wall Flow , ceramic carrier





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient
