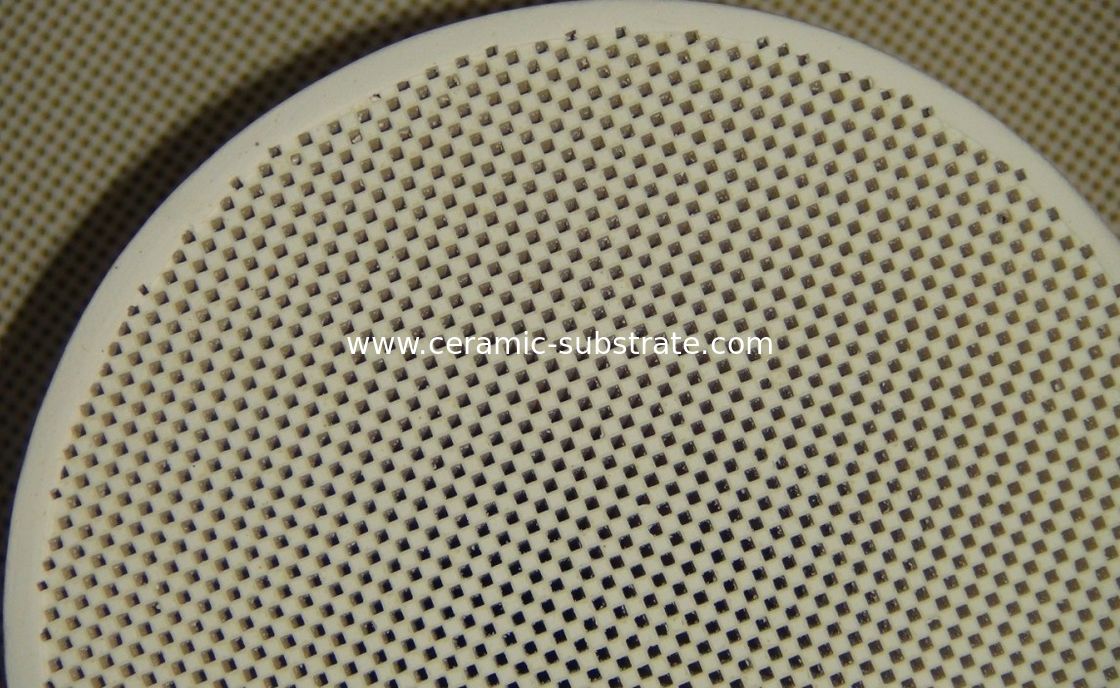

Cordierite Diesel Particulate Filter
Product Details:
Place of Origin: China.Yixing
Brand Name: Yuxing
Certification: ISO9001 TS/16949
Payment & Shipping Terms:
Minimum Order Quantity: NO
Packaging Details: Standard export packing
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 6 million liter/year
Contact Now
Detailed Product Description
Cells Density:: 100 - 200 CPSI Material:: Cordierite
Size:: Customize Color:: White
Name:: Catalyst Supports, Honeycomb Ceramics, Ceramic Substrates Shape:: Round
Usage:: Car Catalytic Converter
High Light:

ceramic membrane filters

,

ceramic disc filter

Cordierite Diesel Particulate Filter , White Ceramic Substrate




2.   Product use

 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



 Overall dimensions standards



Item



Standard  value

Test methods

Wall thinkness

100CPSI

0.46MM±0.04

vernier caliper

200CPSI

0.36MM±0.04

vernier caliper

Overall

dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%height

vernier caliper

hole

density

(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% intact

Bright light perspective

internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient





Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Cordierite Diesel Particulate Filter  0



The height can be designed by customer

2

127(5”)

12667

Cordierite Diesel Particulate Filter  1

3

144(5.66”)

16286

Cordierite Diesel Particulate Filter  2

4

150(5.9”)

17671

Cordierite Diesel Particulate Filter  3

5

190(7.5”)

28352

Cordierite Diesel Particulate Filter  4

6

228(9”)

40828

Cordierite Diesel Particulate Filter  5

7

240(9.5”)

45238

Cordierite Diesel Particulate Filter  6

8

267(10.5”)

55990

Cordierite Diesel Particulate Filter  7

9

286(11.25”)

64242

Cordierite Diesel Particulate Filter  8

10

305(12”)

73061

Cordierite Diesel Particulate Filter  9

11

330(13”)

85529

Cordierite Diesel Particulate Filter  10

12

381(15”)

114009.00

Cordierite Diesel Particulate Filter  11

13

457(18”)

164029.00

Cordierite Diesel Particulate Filter  12

14

144.8x81.3

9921.16

Cordierite Diesel Particulate Filter  13

15

144x116

13366.67

Cordierite Diesel Particulate Filter  14

16

188x103

16338

Cordierite Diesel Particulate Filter  15

17

Trapezium 130x100

10530

Cordierite Diesel Particulate Filter  16

18

203.3x97

17059

Cordierite Diesel Particulate Filter  17

19

191.8×95.8

14698

Cordierite Diesel Particulate Filter  18

20

190×134

22160

Cordierite Diesel Particulate Filter  19

21

145×118

14120

Cordierite Diesel Particulate Filter  20

22

154.9×127

15771.65

Cordierite Diesel Particulate Filter  21

23

207.3×101.4

17753.25

Cordierite Diesel Particulate Filter  22

24

207.4x100.4

17920

Cordierite Diesel Particulate Filter  23





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient
