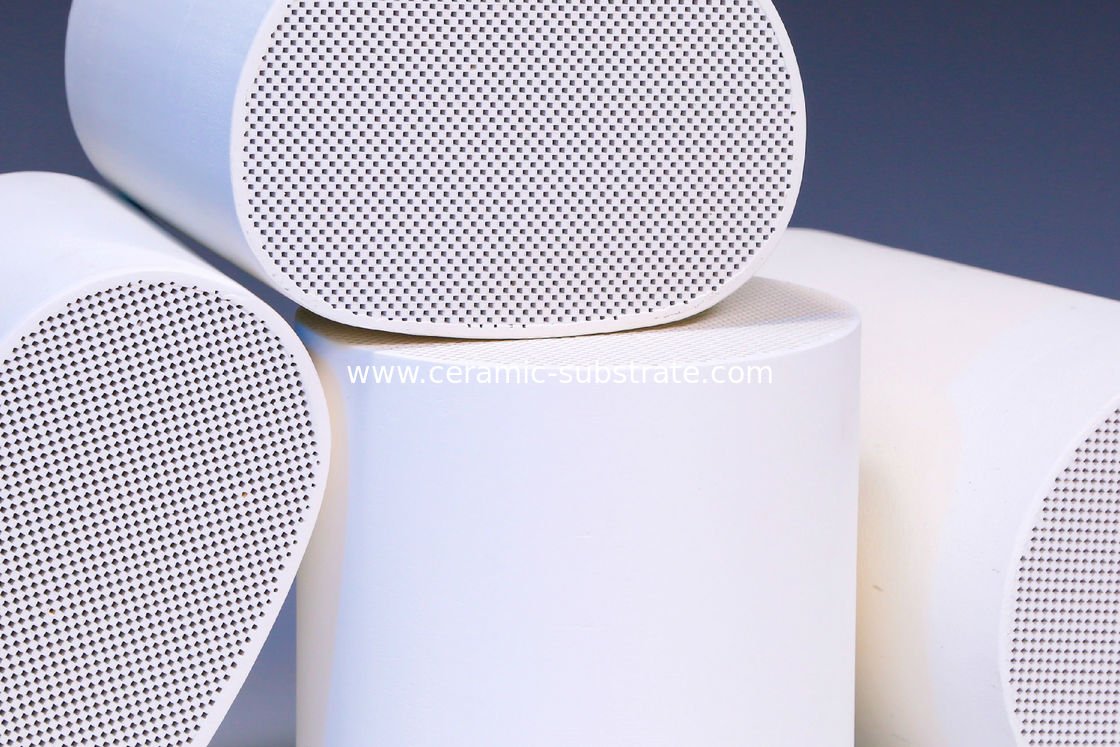

Honeycomb Ceramic Cordierite DPF For Catalytic Converters

Honeycomb Ceramic Cordierite DPF For Catalytic Converters

    • Honeycomb Ceramic Cordierite DPF For Catalytic Converters
    • Honeycomb Ceramic Cordierite DPF For Catalytic Converters
    • Honeycomb Ceramic Cordierite DPF For Catalytic Converters
    • Honeycomb Ceramic Cordierite DPF For Catalytic Converters
  • Honeycomb Ceramic Cordierite DPF For Catalytic Converters

    Product Details:

    Place of Origin: China.Yixing
    Brand Name: Yuxing
    Certification: ISO9001 TS/16949

    Payment & Shipping Terms:

    Minimum Order Quantity: NO
    Packaging Details: Standard export packing
    Delivery Time: 5 work days
    Payment Terms: T/T, L/C
    Supply Ability: 6 million liter/year
    Contact Now
    Detailed Product Description
    Cells Density:: 100 - 200 CPSI Material:: Cordierite
    Size:: Customize Color:: White
    Name:: Catalyst Substrates|cordierite Substrate|ceramic Honeycomb Shape:: Round
    Usage:: Car Catalytic Converter
    High Light:

    diesel particulate filter

    ,

    diesel exhaust filters


    100 - 400CPSI Honeycomb Ceramic Cordierite DPF For Catalytic Converters



    2.   1.Product use



     This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



    2.Overall dimensions standards



    Item

     Overall dimensions

    standard values



    Test method



    Wall thinkness

    100CSI

    0.46MM±0.04

    vernier caliper

    200CSI

    0.36MM±0.04

    vernier caliper

    Overall dimensions

    OD:<120MM

    ±1.0MM

    vernier caliper

                ≥120MM

    ±1%

    vernier caliper

    Height:<150

    ±1.0

    vernier caliper

                 ≥150

    ±1%Height

    vernier caliper

    Hole density(Holes /inch2)

    100CSI

    100±10

    vernier caliper

    200CSI

    200±10

    vernier caliper

    Hole sealing integrity

    100% Intact

    Bright light perspective

    Internal crack





    Bright light perspective



    Physical and chemical properties



    Item

    Standard value

    Test methods

    chemical

    component



    Al2O3

    35.4%±1.5%

    chemical analysis

    SiO2

    50.9%±1.5%

    MgO

    13.5%±1.5%

    RT Mpa

    ≥10.0Mpa

    universal material

    testing machine



    porosity

    ≥50%

    Gravimetric method

    Max. working temperature

    1400℃

    high-temperature electric resistance furnace

    CET(800℃)

    ≤1.2*10-6/℃

    thermal dilatometer

    The average pore aperture

    7~15

    Mercury Injection

    Apparatus





    Description:



    This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

    Benefits of Products:

    ●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

    ●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

    ●The pressure drop is small

    ●High filtration efficiency, able to adapt to all kinds of regeneration

    ● Low thermal expansion coefficient



    Applications:



    This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





    Specifications



      Cell density (CPSI):100~400



    Item

    (mm)

    Sectional Dimension

    (mm2)

    Area of Section



    Shape of Section

    (mm)

    Height

    1

    144(4.66”)

    16282

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 0



    The height can be designed by customer.

    (The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

    152.4mm(6”).

    2

    150

    17671

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 1

    3

    165(6.5”)

    21382

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 2

    4

    170

    22698

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 3

    5

    175

    24052

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 4

    6

    190(7.5”)

    28352

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 5

    7

    210

    34636

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 6

    8

    228(9”)

    40828

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 7

    9

    240(9.5”)

    45238

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 8

    10

    267(10.5”)

    55990

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 9

    11

    286(11.25”)

    64242

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 10

    12

    305(12”)

    73061

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 11

    13

    330(13”)

    85529

    Honeycomb Ceramic Cordierite DPF For Catalytic Converters 12





    REMARK: The SIZE can be designed by customer





    Competitive Advantage:



    ●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

    ●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

    ●The pressure drop is small

    ●High filtration efficiency, able to adapt to all kinds of regeneration

    ● Low thermal expansion coefficient
