50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

Category:
Cordierite DPF
Payment Method:
T/T, L/C
Specifications
High Light:

diesel particulate filter

,

dpf diesel engine

,

SiO2 Cordierite DPF

Introduction

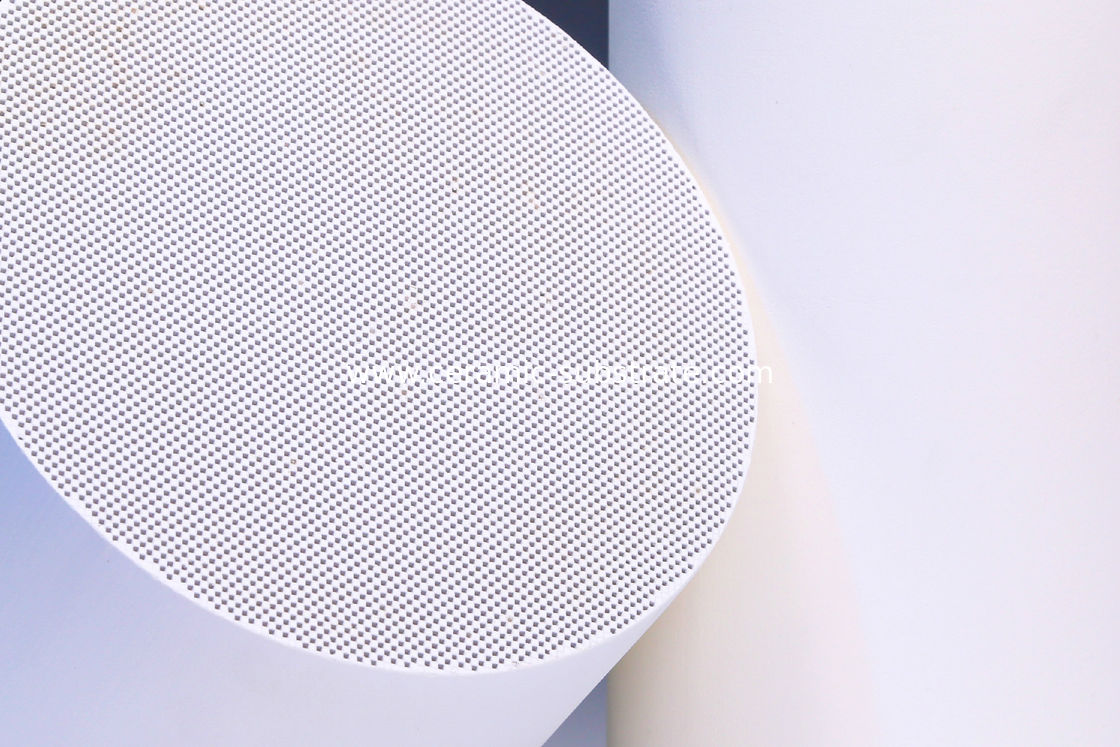

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters


2.   1. Product use



 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



2.Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient





Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





Specifications



 Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters



The height can be designed by customer

2

127(5”)

12667

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

3

144(5.66”)

16286

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

4

150(5.9”)

17671

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

5

190(7.5”)

28352

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

6

228(9”)

40828

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

7

240(9.5”)

45238

 50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

8

267(10.5”)

55990

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

9

286(11.25”)

64242

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

10

305(12”)

73061

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

11

330(13”)

85529

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

12

381(15”)

114009.00

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

13

457(18”)

164029.00

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

14

144.8x81.3

9921.16

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

15

144x116

13366.67

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

16

188x103

16338

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

17

Trapezium 130x100

10530

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

18

203.3x97

17059

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

19

191.8×95.8

14698

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

20

190×134

22160

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

21

145×118

14120

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

22

154.9×127

15771.65

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

23

207.3×101.4

17753.25

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters

24

207.4x100.4

17920

50.9% SiO2 Cordierite DPF , Silicon Carbide Sic DPF For Catalytic Converters





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient
