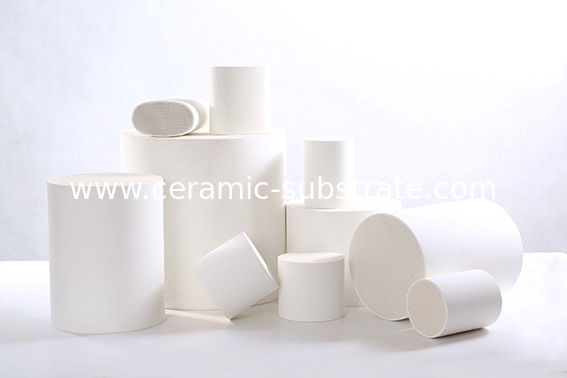

DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter

DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter

    • DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter
    • DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter
    • DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter
    • DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter
  • DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter

    Product Details:

    Place of Origin: China.Yixing
    Brand Name: Yuxing
    Certification: ISO9001 TS/16949

    Payment & Shipping Terms:

    Minimum Order Quantity: NO
    Packaging Details: Standard export packing
    Delivery Time: 5 work days
    Payment Terms: T/T, L/C
    Supply Ability: 6million liter/year
    Contact Now
    Detailed Product Description
    Cells Density:: 100 - 200 CPSI Material:: Cordierite
    Size:: Customize Color:: Ivory
    Name:: Catalyst Substrates|cordierite Substrate|ceramic Honeycomb Shape:: Round
    Usage:: Car Catalytic Converter
    High Light:

    dpf diesel engine

    ,

    diesel exhaust filter


    Cordierite Wall Flow Filter / DPF Substrate For Diesel Catalytic Converter



    2.    1.Product use



     This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



    2.Overall dimensions standards



    Item

     Overall dimensions

    standard values



    Test method



    Wall thinkness

    100CSI

    0.46MM±0.04

    vernier caliper

    200CSI

    0.36MM±0.04

    vernier caliper

    Overall dimensions

    OD:<120MM

    ±1.0MM

    vernier caliper

                ≥120MM

    ±1%

    vernier caliper

    Height:<150

    ±1.0

    vernier caliper

                 ≥150

    ±1%Height

    vernier caliper

    Hole density(Holes /inch2)

    100CSI

    100±10

    vernier caliper

    200CSI

    200±10

    vernier caliper

    Hole sealing integrity

    100% Intact

    Bright light perspective

    Internal crack





    Bright light perspective



    Physical and chemical properties

    Item

    Standard value

    Test methods

    chemical

    component



    Al2O3

    35.4%±1.5%

    chemical analysis

    SiO2

    50.9%±1.5%

    MgO

    13.5%±1.5%

    RT Mpa

    ≥10.0Mpa

    universal material

    testing machine



    porosity

    ≥50%

    Gravimetric method

    Max. working temperature

    1400℃

    high-temperature electric resistance furnace

    CET(800℃)

    ≤1.2*10-6/℃

    thermal dilatometer

    The average pore aperture

    7~15

    Mercury Injection

    Apparatus





    Description:



    This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

    Benefits of Products:

    ●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

    ●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

    ●The pressure drop is small

    ●High filtration efficiency, able to adapt to all kinds of regeneration

       ● Low thermal expansion coefficient





    Applications:



    This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





    Specifications



      Cell density (CPSI):100 and 200



    Item

    (mm)

    Sectional Dimension

    (mm2)

    Area of Section



    Shape of Section

    (mm)

    Height

    1

    118.4(4.66”)

    11010

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 0



    The height can be designed by customer

    2

    127(5”)

    12667

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 1

    3

    144(5.66”)

    16286

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 2

    4

    150(5.9”)

    17671

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 3

    5

    190(7.5”)

    28352

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 4

    6

    228(9”)

    40828

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 5

    7

    240(9.5”)

    45238

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 6

    8

    267(10.5”)

    55990

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 7

    9

    286(11.25”)

    64242

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 8

    10

    305(12”)

    73061

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 9

    11

    330(13”)

    85529

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 10

    12

    381(15”)

    114009.00

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 11

    13

    457(18”)

    164029.00

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 12

    14

    144.8x81.3

    9921.16

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 13

    15

    144x116

    13366.67

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 14

    16

    188x103

    16338

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 15

    17

    Trapezium 130x100

    10530

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 16

    18

    203.3x97

    17059

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 17

    19

    191.8×95.8

    14698

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 18

    20

    190×134

    22160

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 19

    21

    145×118

    14120

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 20

    22

    154.9×127

    15771.65

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 21

    23

    207.3×101.4

    17753.25

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 22

    24

    207.4x100.4

    17920

    DPF Substrate / Cordierite Wall Flow Filter For Diesel Catalytic Converter 23





    REMARK: The SIZE can be designed by customer





    Competitive Advantage:



    ●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

    ●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

    ●The pressure drop is small

    ●High filtration efficiency, able to adapt to all kinds of regeneration

       ● Low thermal expansion coefficient
