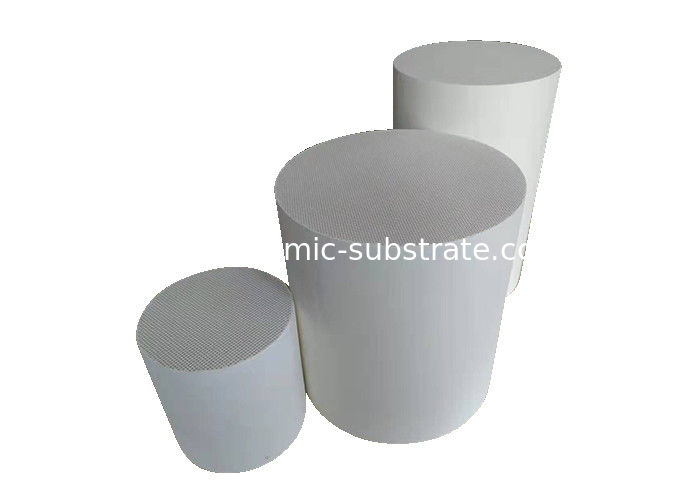

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

Category:
DPF Substrate
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 - 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
Ivory
Name::
Catalyst Substrates|cordierite Substrate|ceramic Honeycomb
Shape::
Round
Usage::
Car Catalytic Converter
High Light:

dpf diesel engine

,

catalyzed diesel particulate filter

,

White DPF Substrate

Introduction





Cordierite Wall Flow Filter / DPF Substrate For Diesel Catalytic Converter



Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





2.    1.Product use



 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



2.Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties

Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus









Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency



The height can be designed by customer

2

127(5”)

12667

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

3

144(5.66”)

16286

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

4

150(5.9”)

17671

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

5

190(7.5”)

28352

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

6

228(9”)

40828

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

7

240(9.5”)

45238

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

8

267(10.5”)

55990

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

9

286(11.25”)

64242

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

10

305(12”)

73061

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

11

330(13”)

85529

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

12

381(15”)

114009.00

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

13

457(18”)

164029.00

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

14

144.8x81.3

9921.16

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

15

144x116

13366.67

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

16

188x103

16338

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

17

Trapezium 130x100

10530

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

18

203.3x97

17059

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

19

191.8×95.8

14698

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

20

190×134

22160

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

21

145×118

14120

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

22

154.9×127

15771.65

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

23

207.3×101.4

17753.25

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency

24

207.4x100.4

17920

White DPF Substrate Cordierite Wall Flow Filter With High Filtration Efficiency





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient
