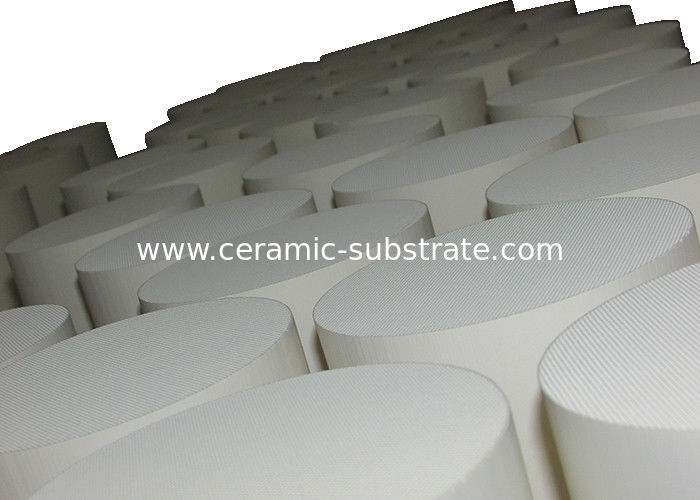

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle

  • White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle
  • White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle
White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle
Product Details:
Place of Origin: China.Yixing
Brand Name: Yuxing
Certification: ISO9001 TS/16949
Payment & Shipping Terms:
Minimum Order Quantity: NO
Packaging Details: Standard export packing
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 6million liter/year
Contact Now
Detailed Product Description
Cells Density:: 100 - 200 CPSI Material:: Cordierite
Size:: Customize Color:: White
Name:: Catalyst Supports|honeycomb Ceramics|ceramic Substrates Shape:: Round
Usage:: Car Catalytic Converter
High Light:

dpf diesel engine

,

catalyzed diesel particulate filter



Alumina Ceramic Substrate For Car , motorcycle​



Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

● The pressure drop is small

● High filtration efficiency, able to adapt to all kinds of regeneration

●  Low thermal expansion coefficient



2.   1.Product use

This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



2. Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus







Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 0



The height can be designed by customer

2

127(5”)

12667

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 1

3

144(5.66”)

16286

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 2

4

150(5.9”)

17671

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 3

5

190(7.5”)

28352

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 4

6

228(9”)

40828

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 5

7

240(9.5”)

45238

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 6

8

267(10.5”)

55990

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 7

9

286(11.25”)

64242

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 8

10

305(12”)

73061

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 9

11

330(13”)

85529

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 10

12

381(15”)

114009.00

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 11

13

457(18”)

164029.00

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 12

14

144.8x81.3

9921.16

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 13

15

144x116

13366.67

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 14

16

188x103

16338

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 15

17

Trapezium 130x100

10530

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 16

18

203.3x97

17059

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 17

19

191.8×95.8

14698

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 18

20

190×134

22160

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 19

21

145×118

14120

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 20

22

154.9×127

15771.65

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 21

23

207.3×101.4

17753.25

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 22

24

207.4x100.4

17920

White Alumina Ceramic Substrate , Honeycomb Ceramic Filter For Car / Motorcycle 23





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient



Tag:



Cordierite DPF

Cordierite Diesel Particulate Filter

Particle Filter

Wall Flow Filter Ceramic Substrates
