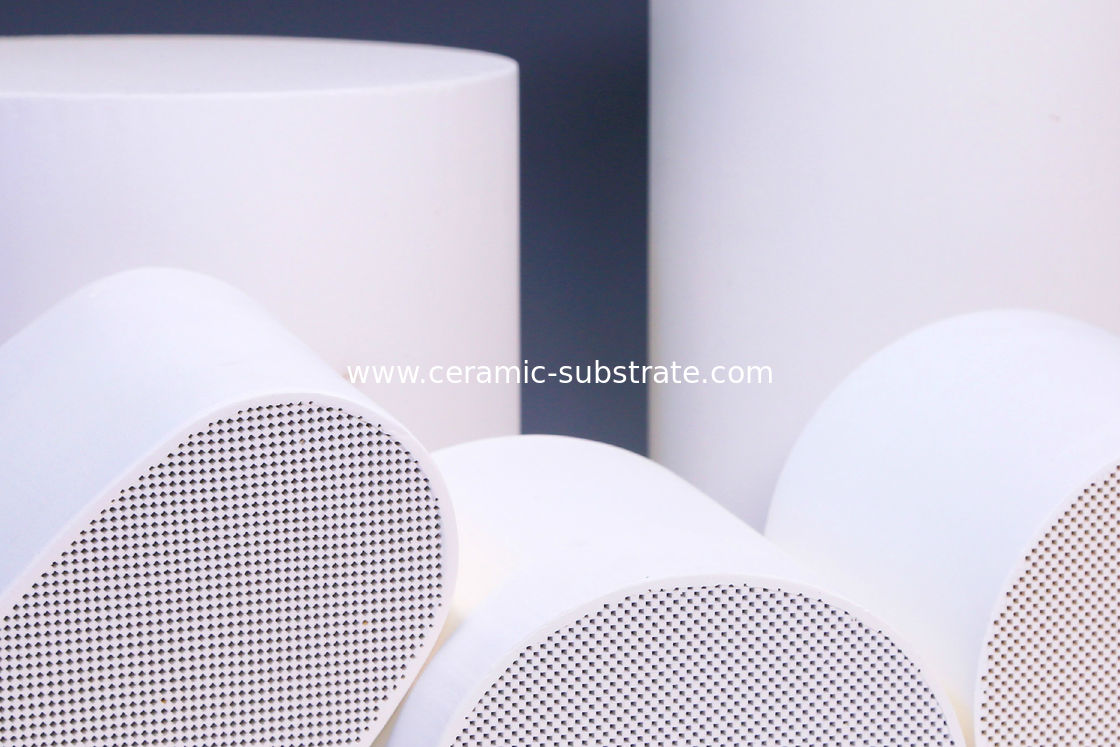

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

Category:
DPF Substrate
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 - 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Catalyst Substrates|cordierite Substrate|ceramic Honeycomb
Shape::
Round
Usage::
Car Catalytic Converter
High Light:

dpf diesel engine

,

catalyzed diesel particulate filter

,

motorcycle Cordierite DPF

Introduction


SiO2 DPF Substrate / Cordierite Diesel Particulate Filter For Car


2.    1.Product use



 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic  filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore  wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust  gas purification. There are cordierite and silicon carbide material.



2.Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

       ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties

Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1200℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~10

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide mater Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

● Low thermal expansion coefficient





Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide mater





Specifications:



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb



The height can be designed by customer

2

127(5”)

12667

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

3

144(5.66”)

16286

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

4

150(5.9”)

17671

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

5

190(7.5”)

28352

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

6

228(9”)

40828

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

7

240(9.5”)

45238

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

8

267(10.5”)

55990

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

9

286(11.25”)

64242

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

10

305(12”)

73061

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

11

330(13”)

85529

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

12

381(15”)

114009.00

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

13

457(18”)

164029.00

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

14

144.8x81.3

9921.16

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

15

144x116

13366.67

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

16

188x103

16338

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

17

Trapezium 130x100

10530

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

18

203.3x97

17059

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

19

191.8×95.8

14698

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

20

190×134

22160

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

21

145×118

14120

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

22

154.9×127

15771.65

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

23

207.3×101.4

17753.25

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb

24

207.4x100.4

17920

Automobile Cordierite DPF For Honeycomb / motorcycle catalytic converter / cordierite honeycomb





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity ratio ,pore diameter distribution uniforms

●Low pressure drop

●High filtration efficiency, adatablity to various modes of producton

● Good heat shock resistance and heat vibration resistance
