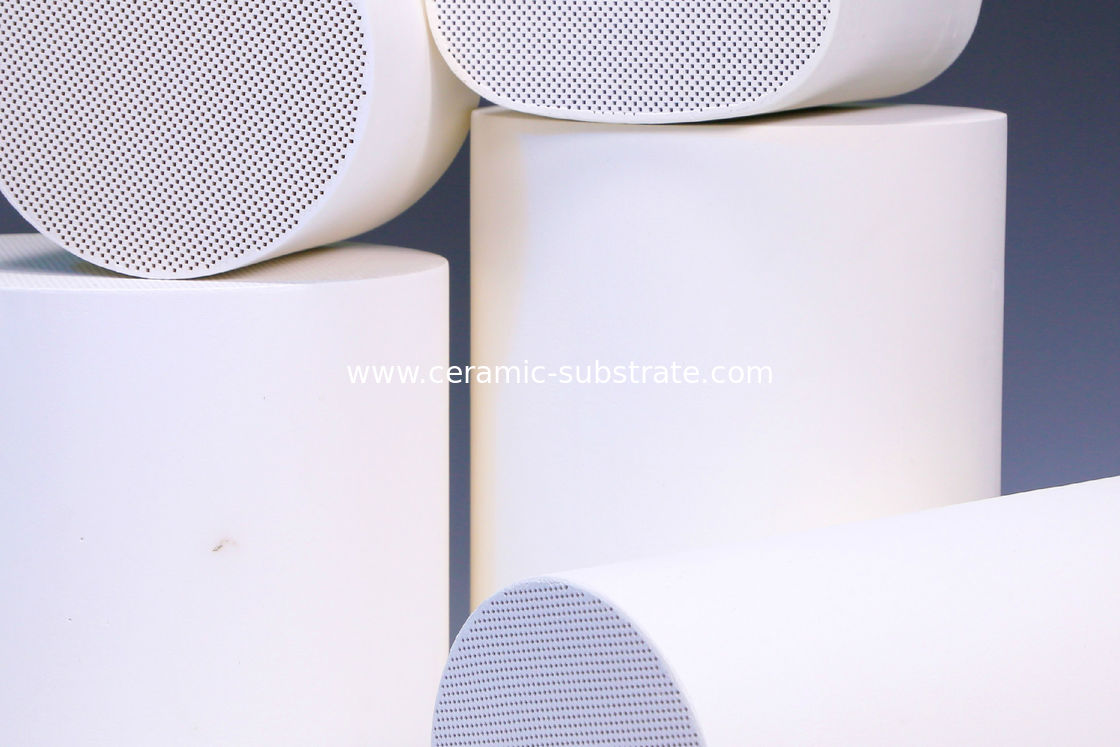

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter

  • High Light

    diesel exhaust filter

    ,

    catalyzed diesel particulate filter

    ,

    Honeycomb Ceramic Substrate 100CSI

  • Cells Density
    100 - 200 CPSI
  • Material
    Cordierite
  • Size
    Customize
  • Color
    White
  • Name
    Catalyst Substrates|cordierite Substrate|ceramic Honeycomb|honeycomb Ceramics
  • Shape
    Round
  • Usage
    Car Catalytic Converter
  • Place of Origin
    China.Yixing
  • Brand Name
    Yuxing
  • Certification
    ISO9001 TS/16949
  • Minimum Order Quantity
    NO
  • Packaging Details
    Standard export packing
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    4million liter/year

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter

Honeycomb Ceramic DPF Substrate , 100CSI DPF for Catalytic Converter



2.    1.Product use



 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





2.Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient





Applications:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro III and Euro IV. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.





Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 0



The height can be designed by customer

2

127(5”)

12667

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 1

3

144(5.66”)

16286

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 2

4

150(5.9”)

17671

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 3

5

190(7.5”)

28352

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 4

6

228(9”)

40828

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 5

7

240(9.5”)

45238

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 6

8

267(10.5”)

55990

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 7

9

286(11.25”)

64242

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 8

10

305(12”)

73061

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 9

11

330(13”)

85529

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 10

12

381(15”)

114009.00

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 11

13

457(18”)

164029.00

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 12

14

144.8x81.3

9921.16

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 13

15

144x116

13366.67

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 14

16

188x103

16338

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 15

17

Trapezium 130x100

10530

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 16

18

203.3x97

17059

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 17

19

191.8×95.8

14698

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 18

20

190×134

22160

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 19

21

145×118

14120

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 20

22

154.9×127

15771.65

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 21

23

207.3×101.4

17753.25

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 22

24

207.4x100.4

17920

Honeycomb Ceramic Substrate , 100CSI ceramic catalyst support / catalytic filter 23





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient
