Honeycomb Cordierite DPF

Honeycomb Cordierite DPF

  • High Light

    diesel particulate filter

    ,

    dpf diesel engine

  • Cells Density
    100 - 200 CPSI
  • Material
    Cordierite
  • Size
    Customize
  • Color
    White
  • Name
    Catalyst Supports, Honeycomb Ceramics, Ceramic Substrates
  • Shape
    Round
  • Usage
    Car Catalytic Converter
  • Place of Origin
    China.Yixing
  • Brand Name
    Yuxing
  • Certification
    ISO9001 TS/16949
  • Minimum Order Quantity
    NO
  • Packaging Details
    Standard export packing
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    6 million liter/year

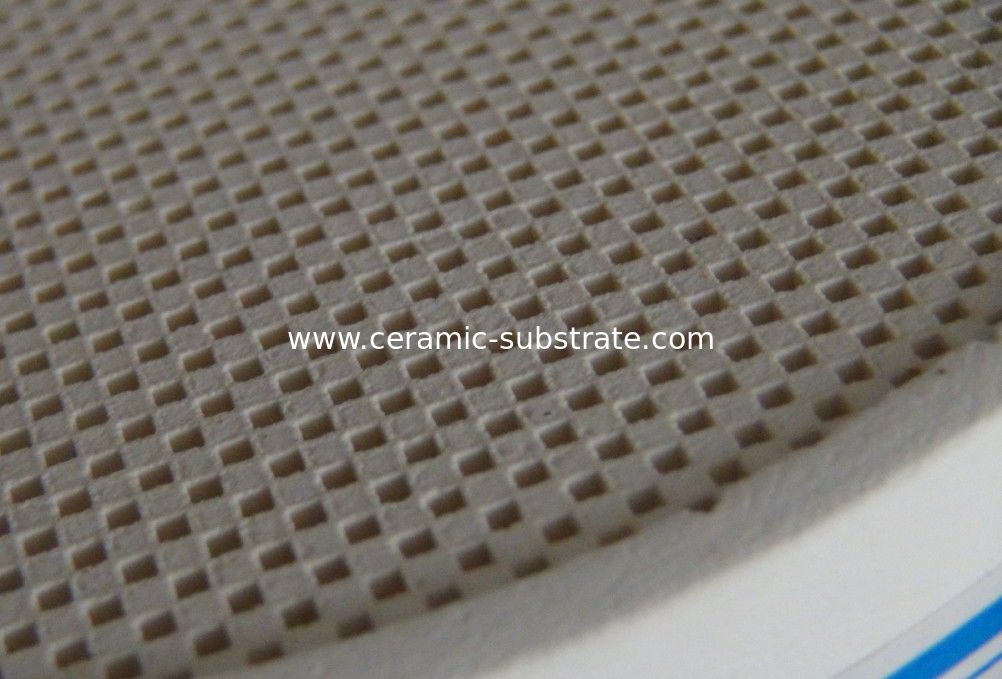

Honeycomb Cordierite DPF


Honeycomb Ceramic Cordierite DPF Diesel Particulate Filter for Diesel Engine



2.   1. Product use

 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



2.Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient





Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





Specifications



  Cell density (CPSI):100~400



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

144(4.66”)

16282

Honeycomb Cordierite DPF 0



The height can be designed by customer.

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

150

17671

Honeycomb Cordierite DPF 1

3

165(6.5”)

21382

Honeycomb Cordierite DPF 2

4

170

22698

Honeycomb Cordierite DPF 3

5

175

24052

Honeycomb Cordierite DPF 4

6

190(7.5”)

28352

Honeycomb Cordierite DPF 5

7

210

34636

Honeycomb Cordierite DPF 6

8

228(9”)

40828

Honeycomb Cordierite DPF 7

9

240(9.5”)

45238

Honeycomb Cordierite DPF 8

10

267(10.5”)

55990

Honeycomb Cordierite DPF 9

11

286(11.25”)

64242

Honeycomb Cordierite DPF 10

12

305(12”)

73061

Honeycomb Cordierite DPF 11

13

330(13”)

85529

Honeycomb Cordierite DPF 12





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient
