Laser Wavelength 355 Nm Ceramic Substrates Featuring Cells Density 100 to 600 CPSI and Dielectric Strength 10 to 15 KV per millimeter for Power Electronics

Product Description:

Ceramic substrates are essential components in a wide range of electronic and industrial applications, providing superior performance, reliability, and durability. Our Ceramic Substrates are manufactured from high-quality materials including Alumina (Al2O3), Aluminum Nitride (AlN), and Silicon Nitride (Si3N4), each selected to meet the specific requirements of various advanced technologies. These materials ensure excellent thermal conductivity, electrical insulation, and mechanical strength, making them ideal for demanding environments.

One of the standout options in our product line is the Aluminum Nitride Substrate, also known as the AlN Substrate. This particular substrate is highly regarded for its outstanding thermal conductivity, which is significantly higher than that of Alumina. The Aluminum Nitride Substrate is perfect for applications where heat dissipation is critical, such as in high-power electronics, LED lighting, and RF devices. Its low moisture absorption rate of less than 0.05% guarantees stability and performance even in humid or challenging conditions, ensuring long-term reliability.

In addition to the Aluminum Nitride Substrate, we also offer Alumina-based ceramic substrates, which are widely used due to their excellent electrical insulation properties and cost-effectiveness. Silicon Nitride substrates are available for applications requiring superior mechanical strength and thermal shock resistance. Each material type is engineered to provide optimal dielectric strength, ranging between 10-15 KV/mm, which ensures excellent insulation against high voltage stresses.

Our Copper Clad Ceramic Substrate products combine the best of ceramic materials with a conductive copper layer, enhancing electrical performance and heat dissipation. These copper clad options are ideal for use in power modules, hybrid circuits, and microwave devices where efficient heat management and electrical connectivity are crucial. The copper cladding process is precisely controlled to maintain the integrity of the ceramic base while providing a robust platform for circuit fabrication.

All our Ceramic Substrates are designed to operate effectively with laser wavelengths around 355 nm, making them suitable for laser-based manufacturing and processing techniques. This compatibility enables precise cutting, drilling, and patterning, which is essential for creating complex electronic circuits and components.

To ensure customer confidence and product reliability, each Ceramic Substrate comes with a 12-month warranty covering manufacturing defects and performance issues under normal usage conditions. This warranty underscores our commitment to quality and customer satisfaction, providing peace of mind with every purchase.

In summary, our Ceramic Substrates offer a combination of advanced materials such as Alumina, Aluminum Nitride (AlN), and Silicon Nitride, exceptional dielectric strength, minimal moisture absorption, and compatibility with 355 nm laser processing. Whether you require Aluminum Nitride Substrate / AlN Substrate for high thermal conductivity applications or Copper Clad Ceramic Substrate for enhanced electrical performance, our products deliver the reliability and efficiency needed for cutting-edge electronic and industrial solutions.

Features:

• Product Name: Ceramic Substrates
• Adhesive Type: Pressure Sensitive
• Warranty: 12 Months
• Moisture Absorption: <0.05%
• System: Pneumatic Type
• Application Method: Spray
• Suitable for Industrial Ceramic Substrates applications
• Ideal for Ceramic Circuit Substrates manufacturing
• High performance Ceramic Circuit Substrates support

Technical Parameters:

Applications:

The Ceramic Substrates by Yuxing, originating from China, are engineered to meet the highest standards of performance and reliability in various industrial applications. These technical ceramic substrates are specially designed to provide exceptional durability and stability, making them ideal for use in demanding environments. With a moisture absorption rate of less than 0.05%, these substrates ensure consistent performance even under challenging conditions, which is critical for maintaining the integrity of electronic components.

One of the primary application occasions for Yuxing's ceramic substrates is in Wind Power and Solar Inverter Substrates. As renewable energy technologies continue to advance, the need for reliable, high-performance substrates in power conversion systems is paramount. These ceramic substrates serve as the foundational material for solar inverter circuits and wind power modules, offering excellent thermal conductivity and electrical insulation. This ensures efficient energy conversion and long-term operational stability, which is essential for sustainable energy infrastructures.

Another significant application scenario is within MOSFET Power Module Substrates. MOSFETs are crucial components in power electronics, and the substrates used must provide superior heat dissipation and electrical insulation. Yuxing’s pressure sensitive adhesive type ceramic substrates are perfectly suited for this purpose, facilitating strong bonding and minimizing thermal resistance. The precise laser processing using UV laser technology at a wavelength of 355 nm allows for intricate and accurate substrate designs, enhancing the performance and reliability of MOSFET power modules.

In addition to renewable energy and power electronics, these technical ceramic substrates find extensive use in various other industrial sectors requiring high-performance insulating materials. The use of advanced UV laser technology ensures that substrates can be customized to specific design requirements with high precision. Yuxing backs its ceramic substrates with a 12-month warranty, reflecting confidence in their quality and durability.

Overall, Yuxing’s ceramic substrates are indispensable components in modern electronic and power systems. Their application in Wind Power and Solar Inverter Substrates, MOSFET Power Module Substrates, and other technical ceramic substrate uses highlight their versatility and robust performance, making them a preferred choice for engineers and manufacturers aiming for excellence and reliability.

Customization:

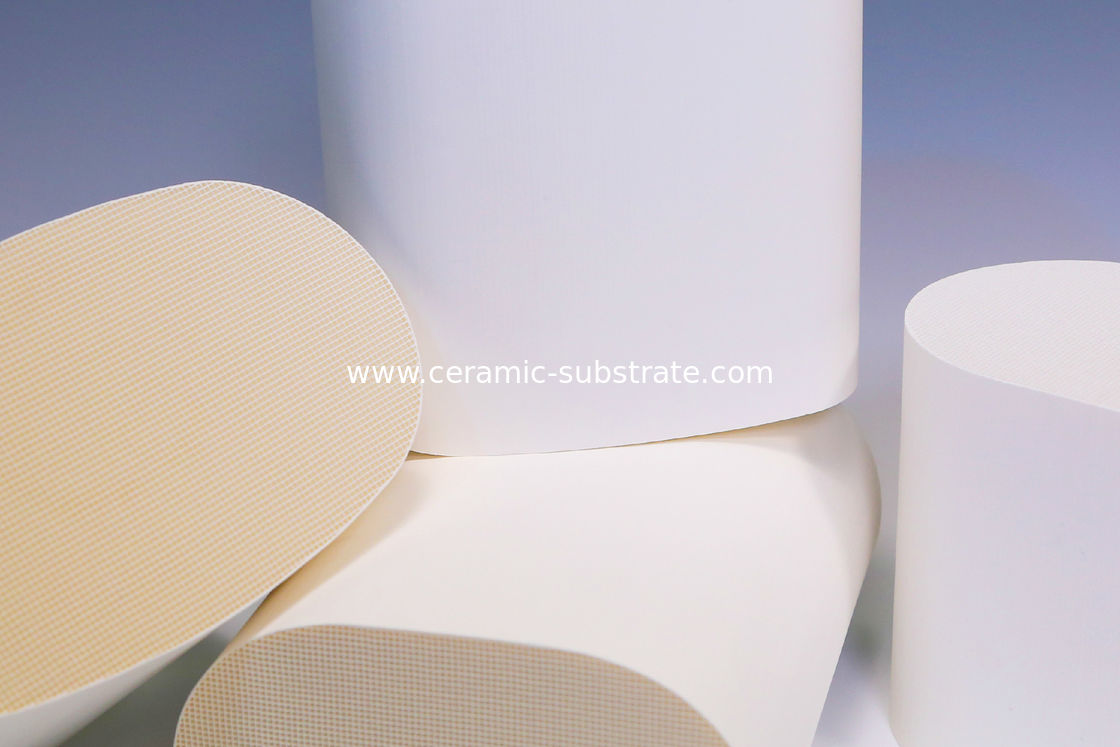

Yuxing offers customized Ceramic Substrate solutions designed to meet diverse industrial needs. Manufactured in China, our Ceramic Substrates come with wattage options including 7W, 10W, 15W, 20W, 25W, and 30W to suit various power requirements. Featuring an interior coating type, these Ceramic Insulating Substrates are optimized for use in Diesel Oxidation Catalyst systems, ensuring durability and high performance.

Our Ceramic Substrate products are ideal for applications in power electronics, LED substrates, automotive electronics, and RF modules. With a precise laser wavelength of 355 nm, Yuxing’s customization services guarantee high-quality, reliable substrates tailored to your specific application demands.

Support and Services:

Our Ceramic Substrates product line is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide expert guidance on product selection, application design, and integration to meet your specific requirements. Our technical team is available to assist with troubleshooting, process optimization, and customization options. Additionally, we offer detailed product documentation, including material specifications, mechanical and thermal properties, and handling instructions. For quality assurance, our substrates undergo rigorous testing to comply with industry standards. We are committed to delivering reliable and high-quality ceramic substrates supported by responsive and knowledgeable customer service.

Packing and Shipping:

Our Ceramic Substrates are carefully packaged to ensure maximum protection during transit. Each substrate is individually wrapped with anti-static and cushioning materials to prevent damage from shocks and vibrations. The substrates are then placed in custom-designed trays or boxes that provide secure positioning and minimize movement.

For bulk orders, multiple trays are stacked and packed into sturdy outer cartons made from high-quality corrugated cardboard. All packaging materials are selected to withstand various environmental conditions and handling stresses to guarantee the products arrive in perfect condition.

Shipping is handled by reliable carriers with experience in handling delicate electronic components. We offer various shipping options including air freight, sea freight, and express courier services to meet different delivery requirements. Each shipment is accompanied by detailed documentation including packing lists and certificates of compliance.

We also provide tracking information to keep customers informed of their order status from dispatch to delivery. Our commitment to secure packaging and dependable shipping ensures that our Ceramic Substrates reach you safely and on time.

FAQ:

Q1: What is the brand name of the ceramic substrates?

A1: The ceramic substrates are manufactured under the brand name Yuxing.

Q2: Where are Yuxing ceramic substrates produced?

A2: Yuxing ceramic substrates are produced in China.

Q3: What materials are used in Yuxing ceramic substrates?

A3: Yuxing ceramic substrates are typically made from high-quality ceramic materials designed for excellent thermal and electrical insulation properties.

Q4: What applications are suitable for Yuxing ceramic substrates?

A4: Yuxing ceramic substrates are widely used in electronics, automotive, and industrial applications where reliable insulation and heat resistance are required.

Q5: How can I ensure the compatibility of Yuxing ceramic substrates with my device?

A5: It is recommended to check the specifications such as size, thermal conductivity, and dielectric strength of the Yuxing ceramic substrates to ensure they meet your device requirements.
