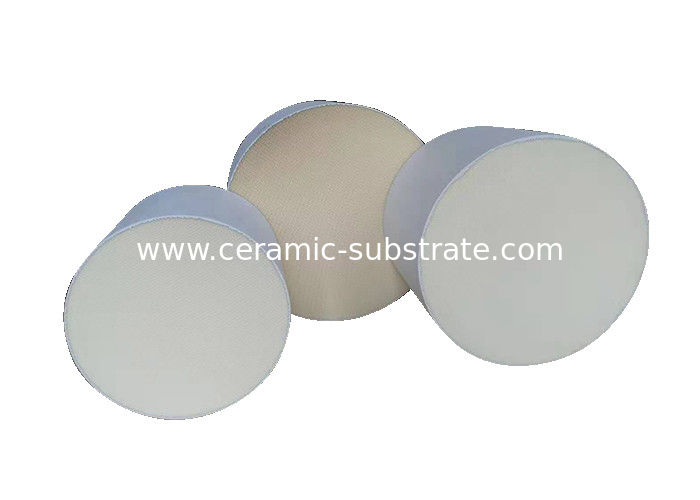

Substrate Cordierite Diesel Particulate Filter White High Porosity

Category:
Ceramic Substrates
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 And 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Cordierite Substrate|honeycomb Ceramic Substrate
Shape::
Round
Usage::
Diesel Particulate Filter
High Light:

High Porosity Diesel Particulate Filter

,

Substrate Cordierite Diesel Particulate Filter

,

Al2o3 Substrate Diesel Particulate Filter

Introduction





Al2O3 Ceramic Substrates , Cordierite Diesel Particulate Filter




Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material





2.   1. Product use



 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



2.Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

● Low thermal expansion coefficient





Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Substrate Cordierite Diesel Particulate Filter White High Porosity



The height can be designed by customer

2

127(5”)

12667

Substrate Cordierite Diesel Particulate Filter White High Porosity

3

144(5.66”)

16286

Substrate Cordierite Diesel Particulate Filter White High Porosity

4

150(5.9”)

17671

Substrate Cordierite Diesel Particulate Filter White High Porosity

5

190(7.5”)

28352

Substrate Cordierite Diesel Particulate Filter White High Porosity

6

228(9”)

40828

Substrate Cordierite Diesel Particulate Filter White High Porosity

7

240(9.5”)

45238

Substrate Cordierite Diesel Particulate Filter White High Porosity

8

267(10.5”)

55990

Substrate Cordierite Diesel Particulate Filter White High Porosity

9

286(11.25”)

64242

Substrate Cordierite Diesel Particulate Filter White High Porosity

10

305(12”)

73061

Substrate Cordierite Diesel Particulate Filter White High Porosity

11

330(13”)

85529

Substrate Cordierite Diesel Particulate Filter White High Porosity

12

381(15”)

114009.00

Substrate Cordierite Diesel Particulate Filter White High Porosity

13

457(18”)

164029.00

Substrate Cordierite Diesel Particulate Filter White High Porosity

14

144.8x81.3

9921.16

Substrate Cordierite Diesel Particulate Filter White High Porosity

15

144x116

13366.67

Substrate Cordierite Diesel Particulate Filter White High Porosity

16

188x103

16338

Substrate Cordierite Diesel Particulate Filter White High Porosity

17

Trapezium 130x100

10530

Substrate Cordierite Diesel Particulate Filter White High Porosity

18

203.3x97

17059

Substrate Cordierite Diesel Particulate Filter White High Porosity

19

191.8×95.8

14698

Substrate Cordierite Diesel Particulate Filter White High Porosity

20

190×134

22160

Substrate Cordierite Diesel Particulate Filter White High Porosity

21

145×118

14120

Substrate Cordierite Diesel Particulate Filter White High Porosity

22

154.9×127

15771.65

Substrate Cordierite Diesel Particulate Filter White High Porosity

23

207.3×101.4

17753.25

Substrate Cordierite Diesel Particulate Filter White High Porosity

24

207.4x100.4

17920

Substrate Cordierite Diesel Particulate Filter White High Porosity





REMARK: The SIZE can be designed by customer





Competitive Advantage:





●The pressure drop is small

● Low thermal expansion coefficient

●High filtration efficiency, able to adapt to all kinds of regeneration

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
