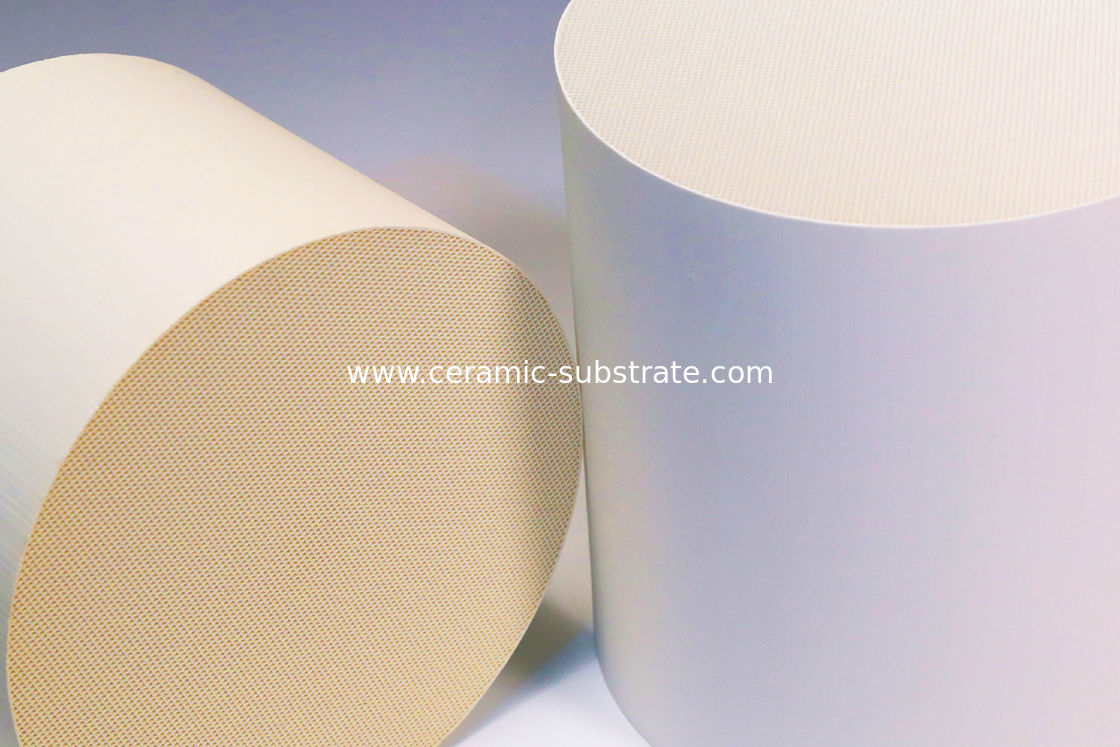

Ceramic Substrates Thin And Three way Catalytic Converter

Category:
Ceramic Substrates
Payment Method:
T/T, L/C
Specifications
Cells Density::
100-400 CPSI
Material::
Cordierite
Size::
Customize
Color::
Ivory
Name::
Cellular Ceramic|ceramic Honeycomb
Shape::
Round
Usage::
3 Way Catalytic Converters
High Light:

honeycomb ceramic catalytic converter

,

honeycomb ceramic substrate

,

Sio2 Ceramic Substrates

Introduction

 Ceramic Substrates Thin And Three way Catalytic Converter




2.   1.Product use



 After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.



2.Overall dimensions standards



Item

Standard value

Tolerance range

Remark

wall thickness

0.17MM

+0.03MM

-0.02MM



density scope

440g/L

±60g/L



Outside dimension

≤100MM

±1MM



>100MM

±1%



Perpendicularity

 ≤100MM

≤1%height



Parallelism

 >100MM

≤1%height





Physical and chemical properties



Item

Standard value

Inspection Method

chemical components

Al2O3

35.2±1%

Chemical analysis

SiO2

50.9±1%

MgO

13.9±1%

Cordierite Crystal phase

≥90%

X-ray diffraction techniques

Compressive

strength

AA xis

≥15 Mpa

Compressive strength technique

BA xis

≥2 Mpa

CA xis

≥0.15 Mpa

Water absorption

20-26%



Weighting methord

Softening point

≥1400

High temperature oven

Refractory

≥1600

Cryptol furnace

CTE(800℃)

≤1.2*10-6/℃

Netzsch dil 402  PC

Thermal shock resistance

550℃three times(air cool)

Muffle furnace





Description:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.

Benefits of Products:

● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal impact resistance and thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.





Applications:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro III and Euro IV. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.





Specifications



  Cell density (CPSI):100~400



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

144(4.66”)

16282

Ceramic Substrates Thin And Three way Catalytic Converter



The height can be designed by customer.

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

150

17671

Ceramic Substrates Thin And Three way Catalytic Converter

3

165(6.5”)

21382

Ceramic Substrates Thin And Three way Catalytic Converter

4

170

22698

Ceramic Substrates Thin And Three way Catalytic Converter

5

175

24052

Ceramic Substrates Thin And Three way Catalytic Converter

6

190(7.5”)

28352

Ceramic Substrates Thin And Three way Catalytic Converter

7

210

34636

Ceramic Substrates Thin And Three way Catalytic Converter

8

228(9”)

40828

Ceramic Substrates Thin And Three way Catalytic Converter

9

240(9.5”)

45238

Ceramic Substrates Thin And Three way Catalytic Converter

10

267(10.5”)

55990

Ceramic Substrates Thin And Three way Catalytic Converter

11

286(11.25”)

64242

Ceramic Substrates Thin And Three way Catalytic Converter

12

305(12”)

73061

Ceramic Substrates Thin And Three way Catalytic Converter

13

330(13”)

85529

Ceramic Substrates Thin And Three way Catalytic Converter



REMARK: The SIZE can be designed by customer





Competitive Advantage:



● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.
