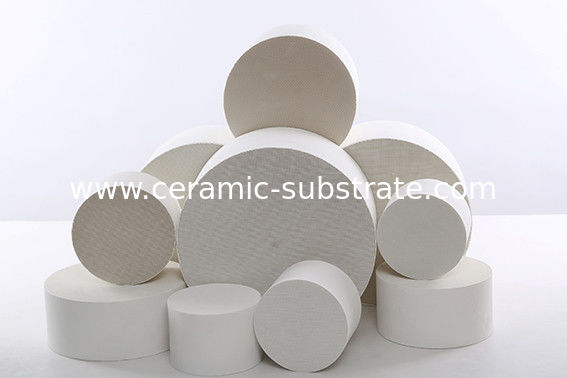

Honeycomb Ceramic Support High Surface Catalyst Substrate

Category:
Ceramic Substrates
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 And 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Cordierite Substrate|honeycomb Ceramic Substrate
Shape::
Round
Usage::
Diesel Particulate Filter
High Light:

High Surface Ceramic Support

,

Honeycomb Ceramic Support

,

Catalyst Substrate Ceramic Support

Introduction

Honeycomb Ceramic Support High Surface Catalyst Substrate



1. Introduction

Environmentally friendly ceramics Ceramic materials can be widely used in various environmental protection fields due to their high strength, high temperature resistance, corrosion resistance and wear resistance, such as automobile exhaust emissions. As a filter material, honeycomb ceramic has the following advantages: good chemical stability, acid and alkali resistance and organic solvent; excellent resistance to rapid heat and rapid cooling, working temperature up to 1000 ° C; good antibacterial property,not easy to be degraded by bacteria, not easy to block and easy Regeneration; strong structural stability, narrow pore size distribution, high permeability; non-toxic, especially suitable for food and drug treatment. Honeycomb ceramics can be made from a variety of materials. The main materials are: cordierite, mullite, aluminum titanate,activated carbon, silicon carbide, activated alumina, zirconia, silicon nitride and cordierite-mullite, cordierite-aluminum titanate and other composite substrates.


2. Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

● The pressure drop is small

● High filtration efficiency, able to adapt to all kinds of regeneration

● Low thermal expansion coefficient





Specifications

  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Honeycomb Ceramic Support High Surface Catalyst Substrate



The height can be designed by customer

2

127(5”)

12667

Honeycomb Ceramic Support High Surface Catalyst Substrate

3

144(5.66”)

16286

Honeycomb Ceramic Support High Surface Catalyst Substrate

4

150(5.9”)

17671

Honeycomb Ceramic Support High Surface Catalyst Substrate

5

190(7.5”)

28352

Honeycomb Ceramic Support High Surface Catalyst Substrate

6

228(9”)

40828

Honeycomb Ceramic Support High Surface Catalyst Substrate

7

240(9.5”)

45238

Honeycomb Ceramic Support High Surface Catalyst Substrate

8

267(10.5”)

55990

Honeycomb Ceramic Support High Surface Catalyst Substrate

9

286(11.25”)

64242

Honeycomb Ceramic Support High Surface Catalyst Substrate

10

305(12”)

73061

Honeycomb Ceramic Support High Surface Catalyst Substrate

11

330(13”)

85529

Honeycomb Ceramic Support High Surface Catalyst Substrate

12

381(15”)

114009.00

Honeycomb Ceramic Support High Surface Catalyst Substrate

13

457(18”)

164029.00

Honeycomb Ceramic Support High Surface Catalyst Substrate

14

144.8x81.3

9921.16

Honeycomb Ceramic Support High Surface Catalyst Substrate

15

144x116

13366.67

Honeycomb Ceramic Support High Surface Catalyst Substrate

16

188x103

16338

Honeycomb Ceramic Support High Surface Catalyst Substrate

17

Trapezium 130x100

10530

Honeycomb Ceramic Support High Surface Catalyst Substrate

18

203.3x97

17059

Honeycomb Ceramic Support High Surface Catalyst Substrate

19

191.8×95.8

14698

Honeycomb Ceramic Support High Surface Catalyst Substrate

20

190×134

22160

Honeycomb Ceramic Support High Surface Catalyst Substrate

21

145×118

14120

Honeycomb Ceramic Support High Surface Catalyst Substrate

22

154.9×127

15771.65

Honeycomb Ceramic Support High Surface Catalyst Substrate

23

207.3×101.4

17753.25

Honeycomb Ceramic Support High Surface Catalyst Substrate

24

207.4x100.4

17920

Honeycomb Ceramic Support High Surface Catalyst Substrate



Honeycomb Ceramic Support High Surface Catalyst SubstrateHoneycomb Ceramic Support High Surface Catalyst SubstrateHoneycomb Ceramic Support High Surface Catalyst Substrate



REMARK: The SIZE can be designed by customer



Competitive Advantage:

●The pressure drop is small

● Low thermal expansion coefficient

● High filtration efficiency, able to adapt to all kinds of regeneration

● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong





Wooden pallets with plastic film or according to your request.

1. Strong packing protects the goods from any possible damage during transit.

2. Solid packing and overall stuffing prevent the cases from vibration and jarring.

3. Necessary precaution is taken to protect goods from pilferage or rain.

4. Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.

Delivery Detail:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.

About us:

Jiangsu Yixing non-metallic Chemical Machinery Co., Ltd., founded in 1957, is a porous ceramic core of high-tech enterprises, since 1985, research and development production of cordierite ceramic honeycomb, and in 1989 won the National Ceramic - "Eighth Five plan" investment funding, is the first domestic development and production of cordierite honeycomb ceramic products.
