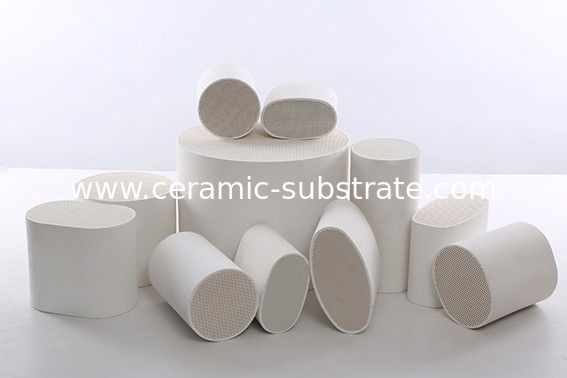

High Strength Honeycomb Ceramic Heat Accumulation Substrate

Category:
Ceramic Substrates
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 And 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Cordierite Substrate|honeycomb Ceramic Substrate
Shape::
Round
Usage::
Diesel Particulate Filter
High Light:

High Strength Ceramic Heat Accumulation Substrate

,

Ceramic Heat Accumulation Substrate

,

Honeycomb Ceramic Heat Accumulation Substrate

Introduction

High strength honeycomb ceramic heat accumulation substrate



Honeycomb ceramic are a new kind of industrial ceramic product developed in recent years. They have a large surface area, higher air vent rate, good heat functions, stable chemical properties etc. At present, ceramic honey -combs are being used to purify industrial waste gas, automobile emissions, eliminate noise, deal with waste water, to dry air, incineration, used in the manufacture of infrared ray instruments, to filter metal liquids etc. All ceramic honeycombs can be produced in conformance with customer requests.



The corundum/mullite and cordierite/mullite complex thermal storage honeycomb ceramic developed by our company has the following notable characters: perfect high temperature resistance, anticorrosion, perfect thermal shock stability, high mechanical strength, large thermal storage capacity, advantaging heat conduction property, energy conserving result and service life are improved greatly. At present, our products have already been approved by numerous iron and steel enterprise and exported to Japan, South Korea and Europe and America market.



2. Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

● The pressure drop is small

● High filtration efficiency, able to adapt to all kinds of regeneration

● Low thermal expansion coefficient





Specifications

  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

High Strength Honeycomb Ceramic Heat Accumulation Substrate



The height can be designed by customer

2

127(5”)

12667

High Strength Honeycomb Ceramic Heat Accumulation Substrate

3

144(5.66”)

16286

High Strength Honeycomb Ceramic Heat Accumulation Substrate

4

150(5.9”)

17671

High Strength Honeycomb Ceramic Heat Accumulation Substrate

5

190(7.5”)

28352

High Strength Honeycomb Ceramic Heat Accumulation Substrate

6

228(9”)

40828

High Strength Honeycomb Ceramic Heat Accumulation Substrate

7

240(9.5”)

45238

High Strength Honeycomb Ceramic Heat Accumulation Substrate

8

267(10.5”)

55990

High Strength Honeycomb Ceramic Heat Accumulation Substrate

9

286(11.25”)

64242

High Strength Honeycomb Ceramic Heat Accumulation Substrate

10

305(12”)

73061

High Strength Honeycomb Ceramic Heat Accumulation Substrate

11

330(13”)

85529

High Strength Honeycomb Ceramic Heat Accumulation Substrate

12

381(15”)

114009.00

High Strength Honeycomb Ceramic Heat Accumulation Substrate

13

457(18”)

164029.00

High Strength Honeycomb Ceramic Heat Accumulation Substrate

14

144.8x81.3

9921.16

High Strength Honeycomb Ceramic Heat Accumulation Substrate

15

144x116

13366.67

High Strength Honeycomb Ceramic Heat Accumulation Substrate

16

188x103

16338

High Strength Honeycomb Ceramic Heat Accumulation Substrate

17

Trapezium 130x100

10530

High Strength Honeycomb Ceramic Heat Accumulation Substrate

18

203.3x97

17059

High Strength Honeycomb Ceramic Heat Accumulation Substrate

19

191.8×95.8

14698

High Strength Honeycomb Ceramic Heat Accumulation Substrate

20

190×134

22160

High Strength Honeycomb Ceramic Heat Accumulation Substrate

21

145×118

14120

High Strength Honeycomb Ceramic Heat Accumulation Substrate

22

154.9×127

15771.65

High Strength Honeycomb Ceramic Heat Accumulation Substrate

23

207.3×101.4

17753.25

High Strength Honeycomb Ceramic Heat Accumulation Substrate

24

207.4x100.4

17920

High Strength Honeycomb Ceramic Heat Accumulation Substrate



High Strength Honeycomb Ceramic Heat Accumulation SubstrateHigh Strength Honeycomb Ceramic Heat Accumulation SubstrateHigh Strength Honeycomb Ceramic Heat Accumulation Substrate



REMARK: The SIZE can be designed by customer



Competitive Advantage:

●The pressure drop is small

● Low thermal expansion coefficient

● High filtration efficiency, able to adapt to all kinds of regeneration

● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong





Wooden pallets with plastic film or according to your request.

1. Strong packing protects the goods from any possible damage during transit.

2. Solid packing and overall stuffing prevent the cases from vibration and jarring.

3. Necessary precaution is taken to protect goods from pilferage or rain.

4. Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.

Delivery Detail:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.

About us:

Jiangsu Yixing non-metallic Chemical Machinery Co., Ltd., founded in 1957, is a porous ceramic core of high-tech enterprises, since 1985, research and development production of cordierite ceramic honeycomb, and in 1989 won the National Ceramic - "Eighth Five plan" investment funding, is the first domestic development and production of cordierite honeycomb ceramic products.
