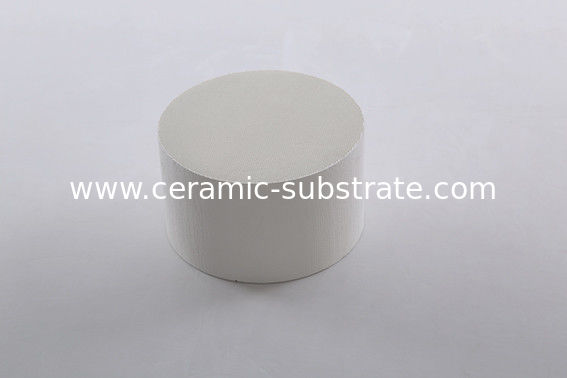

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

Category:
Ceramic Substrates
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 And 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Cordierite Substrate|honeycomb Ceramic Substrate
Shape::
Round
Usage::
Diesel Particulate Filter
High Light:

Honeycomb Ceramic Heat Accumulation Substrate

,

Ceramic Catalytic Converter Substrate

Introduction

Honeycomb Ceramic Catalyst Monolith, Cordierite Honeycomb Ceramic Catalyst Substrate/Carrier/Support



1 Honeycomb ceramic filter are refractories consumables used for gating system(running system) during casting, which includes funnels, tubes(pipes), bends(elbows), tees, pouring cups etc. as seen from following photos. They are widely used for casts of tens of KG to hundred tons in cast steel and cast iron foundries, which could effectively improve cast quality, and highly recognised by various foundries. Lighter strongerm and sawable for ease in assembly (could be sticked together wiht stickers Smooth internal surface promoting streamlined flow and reduce contaminant pick-up. accurate and consistent dimensions reduce casting defects of sand holes, sand-flushing, and sand inclusions. Metal erosion resistance much better than traditional refractories



2. Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

● The pressure drop is small

● High filtration efficiency, able to adapt to all kinds of regeneration

● Low thermal expansion coefficient





Specifications

  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate



The height can be designed by customer

2

127(5”)

12667

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

3

144(5.66”)

16286

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

4

150(5.9”)

17671

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

5

190(7.5”)

28352

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

6

228(9”)

40828

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

7

240(9.5”)

45238

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

8

267(10.5”)

55990

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

9

286(11.25”)

64242

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

10

305(12”)

73061

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

11

330(13”)

85529

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

12

381(15”)

114009.00

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

13

457(18”)

164029.00

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

14

144.8x81.3

9921.16

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

15

144x116

13366.67

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

16

188x103

16338

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

17

Trapezium 130x100

10530

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

18

203.3x97

17059

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

19

191.8×95.8

14698

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

20

190×134

22160

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

21

145×118

14120

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

22

154.9×127

15771.65

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

23

207.3×101.4

17753.25

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate

24

207.4x100.4

17920

Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate



Honeycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter SubstrateHoneycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter SubstrateHoneycomb Ceramic Heat Accumulation Substrate Ceramic Catalytic Converter Substrate



REMARK: The SIZE can be designed by customer



Competitive Advantage:

●The pressure drop is small

● Low thermal expansion coefficient

● High filtration efficiency, able to adapt to all kinds of regeneration

● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong





Wooden pallets with plastic film or according to your request.

1. Strong packing protects the goods from any possible damage during transit.

2. Solid packing and overall stuffing prevent the cases from vibration and jarring.

3. Necessary precaution is taken to protect goods from pilferage or rain.

4. Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.

Delivery Detail:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
