Infrared Ceramic Honeycomb Ceramic Plate Ceramic Disc Substrate
Infrared Ceramic Honeycomb Ceramic Plate
,Ceramic Honeycomb Ceramic Plate
,Ceramic Disc Substrate
Infrared Ceramic Honeycomb Ceramic Plate Ceramic Disc Substrate
2. 1. Product use

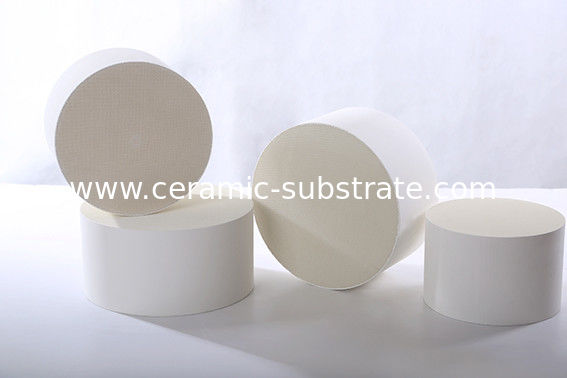

This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.
- Catalytic converters: Cordierite ceramic substrate is the most common material used for the substrate in catalytic converters. This is because it is able to withstand the high temperatures and thermal shock that occur in catalytic converters.
- Exhaust systems: Cordierite ceramic substrate is also used in exhaust systems. It is used to protect the exhaust system from the high temperatures and corrosive gases that are produced by the engine.
- Ovens and furnaces: Cordierite ceramic substrate is used in ovens and furnaces because it is able to withstand the high temperatures and thermal cycling that occur in these applications.
- Heat shields: Cordierite ceramic substrate is used in heat shields because it is able to withstand the high temperatures and protect the underlying material from heat damage.
- Insulation panels: Cordierite ceramic substrate is used in insulation panels because it is a good insulator and can help to retain heat.
- Stovetops: Cordierite ceramic substrate is used in stovetops because it is able to withstand the high temperatures and thermal shock that occur when cooking.
- Cookware: Cordierite ceramic cookware is becoming increasingly popular because it is able to withstand the high temperatures and thermal shock that occur when cooking.
- Water heaters: Cordierite ceramic substrate is used in water heaters because it is able to withstand the high temperatures and corrosion that occur in these applications.
- Solar thermal collectors: Cordierite ceramic substrate is used in solar thermal collectors because it is able to withstand the high temperatures and thermal shock that occur in these applications.
2．Overall dimensions standards
|
Item |
Overall dimensions |
standard values
|
Test method
|
|
Wall thinkness |
100CSI |
0.46MM±0.04 |
vernier caliper |
|
200CSI |
0.36MM±0.04 |
vernier caliper |
|
|
Overall dimensions |
OD:＜120MM |
±1.0MM |
vernier caliper |
|
≥120MM |
±1% |
vernier caliper |
|
|
Height:＜150 |
±1.0 |
vernier caliper |
|
|
≥150 |
±1%Height |
vernier caliper |
|
|
Hole density(Holes /inch2) |
100CSI |
100±10 |
vernier caliper |
|
200CSI |
200±10 |
vernier caliper |
|
|
Hole sealing integrity |
100% Intact |
Bright light perspective |
|
|
Internal crack |
|
|
Bright light perspective |
Physical and chemical properties
|
Item |
Standard value |
Test methods |
|
|
chemical component
|
Al2O3 |
35.4%±1.5% |
chemical analysis |
|
SiO2 |
50.9%±1.5% |
||
|
MgO |
13.5%±1.5% |
||
|
RT Mpa |
≥10.0Mpa |
universal material testing machine
|
|
|
porosity |
≥50% |
Gravimetric method |
|
|
Max. working temperature |
1400℃ |
high-temperature electric resistance furnace |
|
|
CET(800℃) |
≤1.2*10-6/℃ |
thermal dilatometer |
|
|
The average pore aperture |
7～15 |
Mercury Injection Apparatus |
|
Description:
This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.
Benefits of Products:
● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution
● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
● The pressure drop is small
● High filtration efficiency, able to adapt to all kinds of regeneration
● Low thermal expansion coefficient
Specifications
|
Cell density (CPSI):100 and 200 |
||||
|
Item |
(mm) Sectional Dimension |
(mm2) Area of Section |
Shape of Section |
(mm) Height |
|
1 |
118.4(4.66”) |
11010 |
|
The height can be designed by customer |
|
2 |
127(5”) |
12667 |
|
|
|
3 |
144(5.66”) |
16286 |
|
|
|
4 |
150(5.9”) |
17671 |
|
|
|
5 |
190(7.5”) |
28352 |
|
|
|
6 |
228(9”) |
40828 |
|
|
|
7 |
240(9.5”) |
45238 |
|
|
|
8 |
267(10.5”) |
55990 |
|
|
|
9 |
286(11.25”) |
64242 |
|
|
|
10 |
305(12”) |
73061 |
|
|
|
11 |
330(13”) |
85529 |
|
|
|
12 |
381(15”) |
114009.00 |
|
|
|
13 |
457(18”) |
164029.00 |
|
|
|
14 |
144.8x81.3 |
9921.16 |
|
|
|
15 |
144x116 |
13366.67 |
|
|
|
16 |
188x103 |
16338 |
|
|
|
17 |
Trapezium 130x100 |
10530 |
|
|
|
18 |
203.3x97 |
17059 |
|
|
|
19 |
191.8×95.8 |
14698 |
|
|
|
20 |
190×134 |
22160 |
|
|
|
21 |
145×118 |
14120 |
|
|
|
22 |
154.9×127 |
15771.65 |
|
|
|
23 |
207.3×101.4 |
17753.25 |
|
|
|
24 |
207.4x100.4 |
17920 |
|
|
REMARK: The SIZE can be designed by customer
Competitive Advantage:
●The pressure drop is small
● Low thermal expansion coefficient
● High filtration efficiency, able to adapt to all kinds of regeneration
● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution
● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
Wooden pallets with plastic film or according to your request.
1. Strong packing protects the goods from any possible damage during transit.
2. Solid packing and overall stuffing prevent the cases from vibration and jarring.
3. Necessary precaution is taken to protect goods from pilferage or rain.
4. Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.
Jiangsu Yixing non-metallic Chemical Machinery Co., Ltd., founded in 1957, is a porous ceramic core of high-tech enterprises, since 1985, research and development production of cordierite ceramic honeycomb, and in 1989 won the National Ceramic - "Eighth Five plan" investment funding, is the first domestic development and production of cordierite honeycomb ceramic products.
