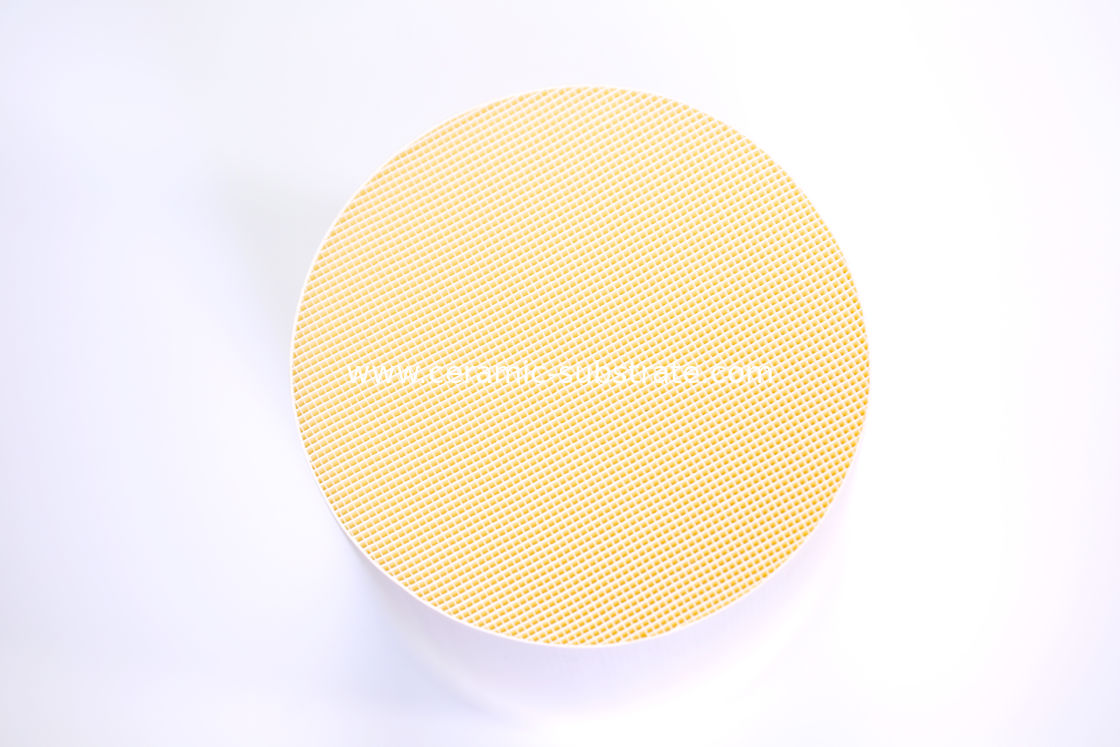

Cordierite Honeycomb Ceramic Catalyst Substrate For Car Exhaust Gas Purifier
Car Exhaust Gas Purifier
,Ceramic Catalyst Substrate
,Honeycomb Ceramic Catalyst Substrate
Cordierite Honeycomb Ceramic Catalyst Substrate For Car Exhaust Gas Purifier
1. The honeycomb ceramic substrate have a very competive substrates.
2. We can produce 100 CPSI, 200 CPSI, 400 CPSI, 600 CPSI can be in the shape of round ,racetrack and oval.
3. Specification can be customizable, as the the customers requirement.
4. Can be coated with the catalyst and the noble metal as the customers emission standards:Euro II, Euro III and Euro IV and EPA standard and the california standards.
1. High specific surface area: ensure exhaust gas could contact weigh catalyst enough.
2. Stable water absorption: guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it's no waste fortoo thick coating.
3. Warm up characters: after starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time.
4. Low exhaust resistance: ask exhaust resistance of substrate to engine low, so that it won’t affect the performance of engine.
5. High intensity: substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed.
6. Perfect assembly: substrates are parts of exhaust; perfect appearance and exact dimension could ensure assembly perfect.
2. 1. Product use
This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.
2．Overall dimensions standards
|
Item |
Overall dimensions |
standard values
|
Test method
|
|
Wall thinkness |
100CSI |
0.46MM±0.04 |
vernier caliper |
|
200CSI |
0.36MM±0.04 |
vernier caliper |
|
|
Overall dimensions |
OD:＜120MM |
±1.0MM |
vernier caliper |
|
≥120MM |
±1% |
vernier caliper |
|
|
Height:＜150 |
±1.0 |
vernier caliper |
|
|
≥150 |
±1%Height |
vernier caliper |
|
|
Hole density(Holes /inch2) |
100CSI |
100±10 |
vernier caliper |
|
200CSI |
200±10 |
vernier caliper |
|
|
Hole sealing integrity |
100% Intact |
Bright light perspective |
|
|
Internal crack |
|
|
Bright light perspective |
Physical and chemical properties
|
Item |
Standard value |
Test methods |
|
|
chemical component
|
Al2O3 |
35.4%±1.5% |
chemical analysis |
|
SiO2 |
50.9%±1.5% |
||
|
MgO |
13.5%±1.5% |
||
|
RT Mpa |
≥10.0Mpa |
universal material testing machine
|
|
|
porosity |
≥50% |
Gravimetric method |
|
|
Max. working temperature |
1400℃ |
high-temperature electric resistance furnace |
|
|
CET(800℃) |
≤1.2*10-6/℃ |
thermal dilatometer |
|
|
The average pore aperture |
7～15 |
Mercury Injection Apparatus |
|
Description:
This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.
Benefits of Products:
● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution
● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
● The pressure drop is small
● High filtration efficiency, able to adapt to all kinds of regeneration
● Low thermal expansion coefficient
Specifications
|
Cell density (CPSI):100 and 200 |
||||
|
Item |
(mm) Sectional Dimension |
(mm2) Area of Section |
Shape of Section |
(mm) Height |
|
1 |
118.4(4.66”) |
11010 |
|
The height can be designed by customer |
|
2 |
127(5”) |
12667 |
|
|
|
3 |
144(5.66”) |
16286 |
|
|
|
4 |
150(5.9”) |
17671 |
|
|
|
5 |
190(7.5”) |
28352 |
|
|
|
6 |
228(9”) |
40828 |
|
|
|
7 |
240(9.5”) |
45238 |
|
|
|
8 |
267(10.5”) |
55990 |
|
|
|
9 |
286(11.25”) |
64242 |
|
|
|
10 |
305(12”) |
73061 |
|
|
|
11 |
330(13”) |
85529 |
|
|
|
12 |
381(15”) |
114009.00 |
|
|
|
13 |
457(18”) |
164029.00 |
|
|
|
14 |
144.8x81.3 |
9921.16 |
|
|
|
15 |
144x116 |
13366.67 |
|
|
|
16 |
188x103 |
16338 |
|
|
|
17 |
Trapezium 130x100 |
10530 |
|
|
|
18 |
203.3x97 |
17059 |
|
|
|
19 |
191.8×95.8 |
14698 |
|
|
|
20 |
190×134 |
22160 |
|
|
|
21 |
145×118 |
14120 |
|
|
|
22 |
154.9×127 |
15771.65 |
|
|
|
23 |
207.3×101.4 |
17753.25 |
|
|
|
24 |
207.4x100.4 |
17920 |
|
|
REMARK: The SIZE can be designed by customer
Competitive Advantage:
●The pressure drop is small
● Low thermal expansion coefficient
● High filtration efficiency, able to adapt to all kinds of regeneration
● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution
● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong
Wooden pallets with plastic film or according to your request.
1. Strong packing protects the goods from any possible damage during transit.
2. Solid packing and overall stuffing prevent the cases from vibration and jarring.
3. Necessary precaution is taken to protect goods from pilferage or rain.
4. Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.
Jiangsu Yixing non-metallic Chemical Machinery Co., Ltd., founded in 1957, is a porous ceramic core of high-tech enterprises, since 1985, research and development production of cordierite ceramic honeycomb, and in 1989 won the National Ceramic - "Eighth Five plan" investment funding, is the first domestic development and production of cordierite honeycomb ceramic products.
