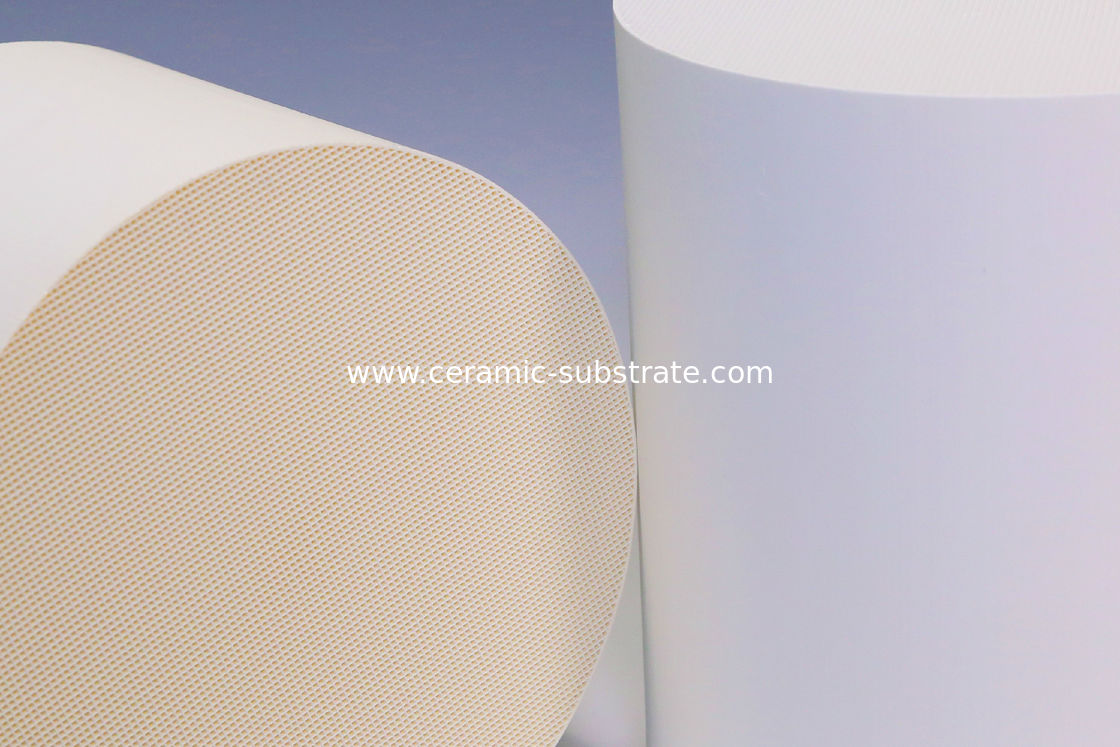

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

Category:
Ceramic Substrates
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 And 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Cordierite Substrate|honeycomb Ceramic Substrate
Shape::
Round
Usage::
Diesel Particulate Filter
High Light:

Cordierite Ceramic Catalyst Substrate

,

DOC SCR Honeycomb Ceramic Substrate

Introduction

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

Honeycomb ceramic is used as DOC, SCR and DPF substrate. It features higher cpsi, thin wall and higher specific surface area, etc. After being coated with precious metal, it is applied to diesel and gasoline exhaust system and industrial gas treatment. We make customized production based on your specification.

Features of catalytic converter ceramic substrates:

* Environmental-friendly
* Wear-resistant, long lifespan
* Main raw material: cordierite ceramic and is the key component of three-way catalytic converter.
* High temperature resistance;
* High mechanical strength;
* 100cpsi, 200cpsi, 300cpsi, 400cpsi, 600cpsi;
* Shape can be round, racetrack, oval, square based on request;

Application of catalytic converter ceramic substrates:

* Substrate for gasoline / petrol fuel engine exhausting system
* Substrate for diesel fuel engine exhausting system
* Substrate for air filtering;
* Substrate coated with precious metal (palladium, platinum and rhodium) to make catalytic converter. It removes harmful



2.   1. Product use



 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



2.Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

● Low thermal expansion coefficient





Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate



The height can be designed by customer

2

127(5”)

12667

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

3

144(5.66”)

16286

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

4

150(5.9”)

17671

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

5

190(7.5”)

28352

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

6

228(9”)

40828

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

7

240(9.5”)

45238

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

8

267(10.5”)

55990

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

9

286(11.25”)

64242

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

10

305(12”)

73061

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

11

330(13”)

85529

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

12

381(15”)

114009.00

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

13

457(18”)

164029.00

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

14

144.8x81.3

9921.16

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

15

144x116

13366.67

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

16

188x103

16338

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

17

Trapezium 130x100

10530

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

18

203.3x97

17059

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

19

191.8×95.8

14698

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

20

190×134

22160

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

21

145×118

14120

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

22

154.9×127

15771.65

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

23

207.3×101.4

17753.25

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate

24

207.4x100.4

17920

POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate



POC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst SubstratePOC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst SubstratePOC DOC DPF SCR Honeycomb Cordierite Ceramic Catalyst Substrate



REMARK: The SIZE can be designed by customer



Competitive Advantage:

●The pressure drop is small

● Low thermal expansion coefficient

● High filtration efficiency, able to adapt to all kinds of regeneration

● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong





Wooden pallets with plastic film or according to your request.

1. Strong packing protects the goods from any possible damage during transit.

2. Solid packing and overall stuffing prevent the cases from vibration and jarring.

3. Necessary precaution is taken to protect goods from pilferage or rain.

4. Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.

Delivery Detail:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.

About us:

Jiangsu Yixing non-metallic Chemical Machinery Co., Ltd., founded in 1957, is a porous ceramic core of high-tech enterprises, since 1985, research and development production of cordierite ceramic honeycomb, and in 1989 won the National Ceramic - "Eighth Five plan" investment funding, is the first domestic development and production of cordierite honeycomb ceramic products.
