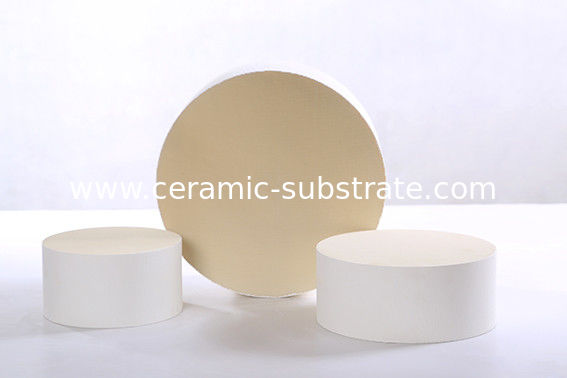

Mullite Cordierite RTO Ceramic Honeycomb Substrate

Category:
Ceramic Substrates
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 And 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Cordierite Substrate|honeycomb Ceramic Substrate
Shape::
Round
Usage::
Diesel Particulate Filter
High Light:

RTO Ceramic Honeycomb Substrate

,

Cordierite Ceramic Honeycomb Substrate

,

Mullite Cordierite Ceramic Honeycomb Substrate

Introduction

Mullite Cordierite RTO Ceramic Honeycomb Substrate



Cordierite ceramic substrate is a type of ceramic material that is made from magnesium aluminum silicate. It is a versatile material that has a number of properties that make it well-suited for a variety of applications.One of the most important properties of cordierite ceramic substrate is its thermal shock resistance. This means that it can withstand sudden changes in temperature without cracking or breaking. This makes it ideal for applications where there is a risk of thermal shock, such as in exhaust systems and catalytic converters. Cordierite ceramic substrate also has a low thermal expansion coefficient. This means that it expands and contracts very little when exposed to changes in temperature. This makes it stable and reliable in applications where there is a lot of thermal cycling, such as in ovens and furnaces. In addition, cordierite ceramic substrate has a high melting point and good insulation properties. This makes it ideal for applications where heat needs to be retained, such as in heat shields and insulation panels. Cordierite ceramic substrate is also a relatively inexpensive material. This makes it a cost-effective option for a variety of applications.





Applications:

This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material





2.   1. Product use



 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



2.Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

● Low thermal expansion coefficient





Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Mullite Cordierite RTO Ceramic Honeycomb Substrate



The height can be designed by customer

2

127(5”)

12667

Mullite Cordierite RTO Ceramic Honeycomb Substrate

3

144(5.66”)

16286

Mullite Cordierite RTO Ceramic Honeycomb Substrate

4

150(5.9”)

17671

Mullite Cordierite RTO Ceramic Honeycomb Substrate

5

190(7.5”)

28352

Mullite Cordierite RTO Ceramic Honeycomb Substrate

6

228(9”)

40828

Mullite Cordierite RTO Ceramic Honeycomb Substrate

7

240(9.5”)

45238

Mullite Cordierite RTO Ceramic Honeycomb Substrate

8

267(10.5”)

55990

Mullite Cordierite RTO Ceramic Honeycomb Substrate

9

286(11.25”)

64242

Mullite Cordierite RTO Ceramic Honeycomb Substrate

10

305(12”)

73061

Mullite Cordierite RTO Ceramic Honeycomb Substrate

11

330(13”)

85529

Mullite Cordierite RTO Ceramic Honeycomb Substrate

12

381(15”)

114009.00

Mullite Cordierite RTO Ceramic Honeycomb Substrate

13

457(18”)

164029.00

Mullite Cordierite RTO Ceramic Honeycomb Substrate

14

144.8x81.3

9921.16

Mullite Cordierite RTO Ceramic Honeycomb Substrate

15

144x116

13366.67

Mullite Cordierite RTO Ceramic Honeycomb Substrate

16

188x103

16338

Mullite Cordierite RTO Ceramic Honeycomb Substrate

17

Trapezium 130x100

10530

Mullite Cordierite RTO Ceramic Honeycomb Substrate

18

203.3x97

17059

Mullite Cordierite RTO Ceramic Honeycomb Substrate

19

191.8×95.8

14698

Mullite Cordierite RTO Ceramic Honeycomb Substrate

20

190×134

22160

Mullite Cordierite RTO Ceramic Honeycomb Substrate

21

145×118

14120

Mullite Cordierite RTO Ceramic Honeycomb Substrate

22

154.9×127

15771.65

Mullite Cordierite RTO Ceramic Honeycomb Substrate

23

207.3×101.4

17753.25

Mullite Cordierite RTO Ceramic Honeycomb Substrate

24

207.4x100.4

17920

Mullite Cordierite RTO Ceramic Honeycomb Substrate



Mullite Cordierite RTO Ceramic Honeycomb SubstrateMullite Cordierite RTO Ceramic Honeycomb SubstrateMullite Cordierite RTO Ceramic Honeycomb Substrate



REMARK: The SIZE can be designed by customer



Competitive Advantage:

●The pressure drop is small

● Low thermal expansion coefficient

● High filtration efficiency, able to adapt to all kinds of regeneration

● High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong





Wooden pallets with plastic film or according to your request.

1. Strong packing protects the goods from any possible damage during transit.

2. Solid packing and overall stuffing prevent the cases from vibration and jarring.

3. Necessary precaution is taken to protect goods from pilferage or rain.

4. Every possible precaution is taken to ensure our products in prime condition when reach customers around the world.

Delivery Detail:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.

About us:

Jiangsu Yixing non-metallic Chemical Machinery Co., Ltd., founded in 1957, is a porous ceramic core of high-tech enterprises, since 1985, research and development production of cordierite ceramic honeycomb, and in 1989 won the National Ceramic - "Eighth Five plan" investment funding, is the first domestic development and production of cordierite honeycomb ceramic products.
