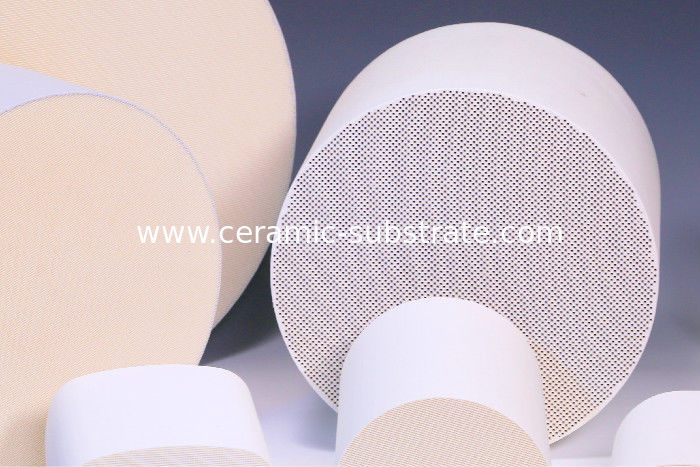

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst

  • High Light

    ceramic catalyst support

    ,

    honeycomb ceramic substrate

  • Cells Density
    100-400 CPSI
  • Material
    Cordierite
  • Size
    Customize
  • Color
    Ivory
  • Name
    Catalyst Supports|cordierite Substrate
  • Shape
    Round
  • Usage
    Diesel Oxidation Catalyst
  • Place of Origin
    China.Yixing
  • Brand Name
    Yuxing
  • Certification
    ISO9001 TS/16949
  • Minimum Order Quantity
    NO
  • Packaging Details
    Standard export packing
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    4million liter/year

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst




2.  1. Product use



After coated with catalysts, this product is applied in catalytic converter of diesel vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of the product in the leading position in domestic, close to or reach the advanced level of similar foreign products.



2.Overall dimensions standards



Item



Standard values



Test method



Wall thinkness

100CPSI

0.45MM±0.03

vernier caliper

200CPSI

0.36MM±0.03

vernier caliper

300CPSI

0.28MM±0.03

vernier caliper

400CPSI

0.21MM ±0.03

vernier caliper

Overall dimensions

OD:<100MM

±1.0MM

vernier caliper

            ≥100MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

       ≥150

±1%Height

vernier caliper

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.2%±1%

chemical

analysis

SiO2

50.9%±1%

MgO

13.9%±1%

Cordierite main crystalline phase content

≥90%

X-ray diffraction

Compressive

strength at

room

temperature



AA xis

≥15Mpa

universal material

 testing machine



BB xis

≥2Mpa

CC xis

≥0.15Mpa

water absorption

23-27%

Gravimetric method

softening temperature

 ≥1400℃

high-temperature electric resistance furnace

CTE(800℃)

≤1.5*10-6/℃

thermal dilatometer

thermal shock

resistance

450℃

Three times don't crack

air cooling





Description:



After coated with catalysts, this product is applied in catalytic converter of diesel vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of the product in the leading position in domestic, close to or reach the advanced level of similar foreign products.

Benefits of Products:

   ● Low thermal expansion coefficient

   ● High porosity of hole on the wall , good liquidity and uniform distribution

   ● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

   ●The pressure drop is small.

   ● Cold start performance is good, low light-off temperature, high conversion efficiency





Applications:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.





Specifications



  Cell density (CPSI):100~400



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

144(4.66”)

16282

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 0



The height can be designed by customer.

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

150

17671

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 1

3

165(6.5”)

21382

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 2

4

170

22698

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 3

5

175

24052

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 4

6

190(7.5”)

28352

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 5

7

210

34636

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 6

8

228(9”)

40828

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 7

9

240(9.5”)

45238

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 8

10

267(10.5”)

55990

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 9

11

286(11.25”)

64242

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 10

12

305(12”)

73061

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 11

13

330(13”)

85529

MgO Ivory Ceramic Substrates Support For Diesel Oxidation Catalyst 12








REMARK: The SIZE can be designed by customer





Competitive Advantage:



  ● Low thermal expansion coefficient

  ● High porosity of hole on the wall , good liquidity and uniform distribution

  ● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

  ●The pressure drop is small.

  ● Cold start performance is good, low light-off temperature, high conversion efficiency
