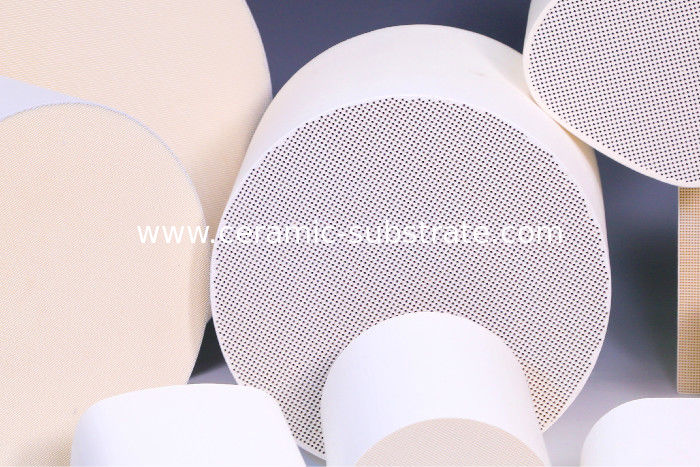

Honeycomb Ceramic Substrates Custom For Exhaust Purification

Honeycomb Ceramic Substrates Custom For Exhaust Purification





Applications:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.





2.   1. Product use



 After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.



2.Overall dimensions standards



Physical and chemical properties



  Cell density (CPSI):100~400



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

144(4.66”)

16282

Honeycomb Ceramic Substrates Custom For Exhaust Purification 0



The height can be designed by customer.

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

150

17671

Honeycomb Ceramic Substrates Custom For Exhaust Purification 1

3

165(6.5”)

21382

Honeycomb Ceramic Substrates Custom For Exhaust Purification 2

4

170

22698

Honeycomb Ceramic Substrates Custom For Exhaust Purification 3

5

175

24052

Honeycomb Ceramic Substrates Custom For Exhaust Purification 4

6

190(7.5”)

28352

Honeycomb Ceramic Substrates Custom For Exhaust Purification 5

7

210

34636

Honeycomb Ceramic Substrates Custom For Exhaust Purification 6

8

228(9”)

40828

Honeycomb Ceramic Substrates Custom For Exhaust Purification 7

9

240(9.5”)

45238

Honeycomb Ceramic Substrates Custom For Exhaust Purification 8

10

267(10.5”)

55990

Honeycomb Ceramic Substrates Custom For Exhaust Purification 9

11

286(11.25”)

64242

Honeycomb Ceramic Substrates Custom For Exhaust Purification 10

12

305(12”)

73061

Honeycomb Ceramic Substrates Custom For Exhaust Purification 11

13

330(13”)

85529

Honeycomb Ceramic Substrates Custom For Exhaust Purification 12




Physical and chemical properties



Item

Standard value

Inspection Method

chemical components

Al2O3

35.2±1%

Chemical analysis

SiO2

50.9±1%

MgO

13.9±1%

Cordierite Crystal phase

≥90%

X-ray diffraction techniques

Compressive

strength

AA xis

≥15 Mpa

Compressive strength technique

BA xis

≥2 Mpa

CA xis

≥0.15 Mpa

Water absorption

20-26%



Weighting methord

Softening point

≥1400

High temperature oven

Refractory

≥1600

Cryptol furnace

CTE(800℃)

≤1.2*10-6/℃

Netzsch dil 402  PC

Thermal shock resistance

550℃three times(air cool)

Muffle furnace





Description:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.

Benefits of Products:

● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal impact resistance and thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.





Specifications



Common sizes

100CPSI~400CPSI Cylindrical typical product specification



No.

spec

No.

spec

No.

spec

1

φ76.2*50

11

φ101.6*123.4

21

φ118.4*120

2

φ80*60

12

φ103*100

22

φ118.4*152.4

3

φ83*60

13

φ103*130

23

φ118.4*136

4

φ83*125

14

φ106*80

24

φ150*100

5

φ83*85

15

φ106*130

25

φ170*100

6

φ93*60

16

φ106*152.4

26

φ105.7*152.4

7

φ93*101.6

17

φ110*130

27

φ105.7*130

8

φ93*152.4

18

φ110*150

28

φ97*170

9

φ100*100

19

φ112*80

29

φ194.5*101.6

10

φ101.6*76

20

φ118.4*100

30

φ105.4*80



100CPSI~400CPSI runway round and oval typical product specifications



No.

spec

No.

spec

1

80*57*85 R21.5

11

169.7*80.8*152.4 R37.2

2

99.8*68.1*120.6 R33.6

12

177.8*114.3*170 R44.9

3

112*60*90 R28

13

169*85.7*127 R30

4

120.6*80*152.4 R39.6

14

127*61*120.7 R23

5

144*68*152.4 R28.4

15

130*85*150 R41

6

144.3*68.1*152.4 R32.2

16

112*60*80 R28.3

7

144.8*81.3*152.4 R37

17

148.6*83.4*81 R38

8

147*76.5*76 R30

18

148.6*83.4*163 R38

9

147*95*152.4 R36.6

19

131*86*80 R35

10

148*84*152.4 R38

20

125*80*125 R32



100CPSI~400CPSI  dysmorphism typical product specifications



No.

spec

No.

spec

1

triangle 144*84*76

11

trapezoid 122.3*104.4*80

2

triangle 144*84*155

12

rectangle 119.5*99.5*115

3

triangle 143.5*84*155

13

dysmorphism 114*105*115

4

triangle 144*84*130

14

dysmorphism 114*105*85

5

triangle 144*84*152.4

15

dysmorphism 114*105*110

6

triangle 144*84*50

16

dysmorphism 114*105*80

7

trapezoid 112.2*92*152.4

17

pyriform 120.2*108*75

8

trapezoid 112.2*92*50

18



9

trapezoid 112*91*152.4

19



10

trapezoid 122.3*104.4*80

20







REMARK: The SIZE can be designed by customer





Competitive Advantage:



● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.
