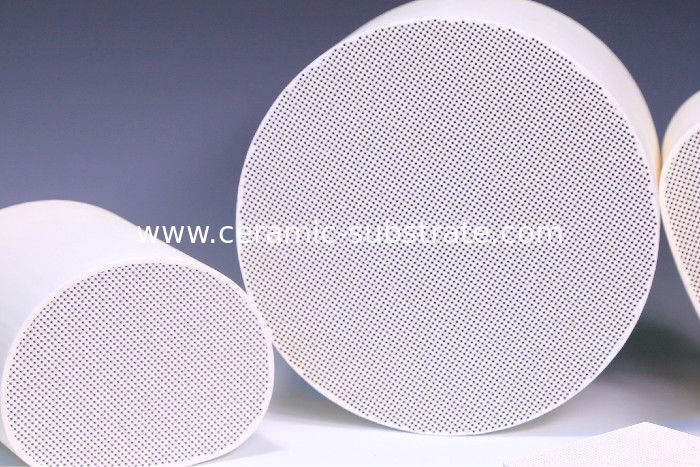

Car Ceramic Substrates For Three way Catalytic Converters

Category:
Ceramic Substrates
Payment Method:
T/T, L/C
Specifications
Cells Density::
100-400 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Cellular Ceramic|ceramic Honeycomb
Shape::
Round
Usage::
3 Way Catalytic Converters
High Light:

ceramic catalyst support

,

honeycomb ceramic substrate

,

Car Ceramic Substrates

Introduction

 Car Ceramic Substrates For Three way Catalytic Converters



1. Product use



 After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze,  convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.



2.Overall dimensions standards



Item

Standard value

Tolerance range

Remark

wall thickness

0.17MM

+0.03MM

-0.02MM



density scope

440g/L

±60g/L



Outside dimension

≤100MM

±1MM



>100MM

±1%



Perpendicularity

 ≤100MM

≤1%height



Parallelism

 >100MM

≤1%height





Physical and chemical properties



Item

Standard value

Inspection Method

chemical components

Al2O3

35.2±1%

Chemical analysis

SiO2

50.9±1%

MgO

13.9±1%

Cordierite Crystal phase

≥90%

X-ray diffraction techniques

Compressive

strength

AA xis

≥15 Mpa

Compressive strength technique

BA xis

≥2 Mpa

CA xis

≥0.15 Mpa

Water absorption

20-26%



Weighting methord

Softening point

≥1400

High temperature oven

Refractory

≥1600

Cryptol furnace

CTE(800℃)

≤1.2*10-6/℃

Netzsch dil 402  PC

Thermal shock resistance

550℃three times(air cool)

Muffle furnace





Description:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.

Benefits of Products:

● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal impact resistance and thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.





Applications:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.





Specifications



  Cell density (CPSI):100~400



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

144(4.66”)

16282

Car Ceramic Substrates For Three way Catalytic Converters



The height can be designed by customer.

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

150

17671

Car Ceramic Substrates For Three way Catalytic Converters

3

165(6.5”)

21382

Car Ceramic Substrates For Three way Catalytic Converters

4

170

22698

Car Ceramic Substrates For Three way Catalytic Converters

5

175

24052

Car Ceramic Substrates For Three way Catalytic Converters

6

190(7.5”)

28352

Car Ceramic Substrates For Three way Catalytic Converters

7

210

34636

Car Ceramic Substrates For Three way Catalytic Converters

8

228(9”)

40828

Car Ceramic Substrates For Three way Catalytic Converters

9

240(9.5”)

45238

Car Ceramic Substrates For Three way Catalytic Converters

10

267(10.5”)

55990

Car Ceramic Substrates For Three way Catalytic Converters

11

286(11.25”)

64242

Car Ceramic Substrates For Three way Catalytic Converters

12

305(12”)

73061

Car Ceramic Substrates For Three way Catalytic Converters

13

330(13”)

85529

Car Ceramic Substrates For Three way Catalytic Converters






REMARK: The SIZE can be designed by customer





Competitive Advantage:



● Thin wall thickness

● Low pressure drop

● High surface area

● Height compressive strength

● Low thermal expansion coefficient

● Good thermal shock resistance

● Excellent compatibility with various active composition in catalyst

●Good performance in cold start, low ignition temperature, quick temperature rise, little air resistance, and high conversion efficiency.
