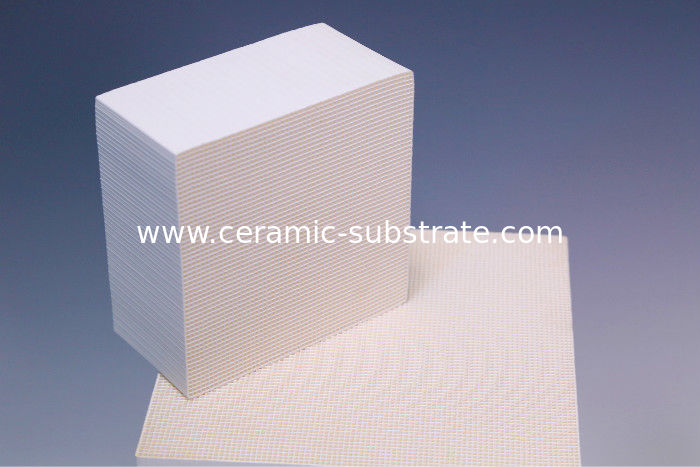

Monolithic Catalyst Support MgO Ceramic catalyst carrier For Exhaust Gas Purifier

Category:
Monolithic Catalyst Support
Payment Method:
T/T, L/C
Specifications
Cells Density:
100-400 CPSI
Material:
Cordierite
Size:
Customize
Name:
Catalytic Support
Usage:
Car Catalytic Converter
Shape:
Square
High Light:

Ceramic catalyst carrier

,

ceramic catalytic converter

,

MgO Monolithic Catalyst Support

Introduction

Ceramic Honeycomb Ceramic Substrate MgO For Exhaust Gas Purifier





1.Product use

After coated with catalyst, the product is widely applied in organic waste gas purification, heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification, NOx purification system, garbage incineration and harmful gas purification treatment, etc.



2.Overall dimensions standards

Item



Standard values

Tolerance

Remark

Overall dimensions

Length

150MM

±1.5MM



Width

150MM

±1.5MM



Height

50-100MM

±1.0MM



101-300MM

±1%MM*height



Perpendicularity

Height

50-100MM

≤1MM



101-300MM

≤1%Height



Parallelism

Height

50-100MM

≤1MM



101-300MM

≤1%height







Item

Standard

values



Test

methodS



chemical component



Al2O3

35.2%±1%

Chemical titration

 analysis

SiO2

50.9%±1%

MgO

13.9%±1%

Cordierite main crystalline

 phase content

≥90%

X-ray diffraction

RT Mpa

AAxis

≥15 Mpa

universal material

testing machine

BBxis

≥2 Mpa

water absorption

23%-27%

Gravimetric method

softening temperature

≥1320℃

high-temperature electric resistance furnace

CET(800℃)

≤1.6*10-6/℃

thermal dilatometer





Description:



After coated with catalyst, the product is widely applied in organic waste gas purification, heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification, NOx purification system, garbage incineration and harmful gas purification treatment, etc.

Benefits of Products:

● Large Surface Area

● Low thermal expansion coefficient

● Good thermal shock and thermal shock performance

● Good corrosion resistant performance





Applications:



After coated with catalyst, the product is widely applied in organic waste gas purification, heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification, NOx purification system, garbage incineration and harmful gas purification treatment, etc.





Specifications



Cell density (CPSI):7~400



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

50×50

2500

Monolithic Catalyst Support MgO Ceramic catalyst carrier For Exhaust Gas Purifier



The height can be designed by customer

2

50×50

2500

Monolithic Catalyst Support MgO Ceramic catalyst carrier For Exhaust Gas Purifier

3

100x100

10000

Monolithic Catalyst Support MgO Ceramic catalyst carrier For Exhaust Gas Purifier

4

150x150

22500

Monolithic Catalyst Support MgO Ceramic catalyst carrier For Exhaust Gas Purifier





REMARK: The SIZE can be designed by customer





Competitive Advantage:



● Large Surface Area

● Low thermal expansion coefficient

● Good thermal shock and thermal shock performance

● Good corrosion resistant performance
