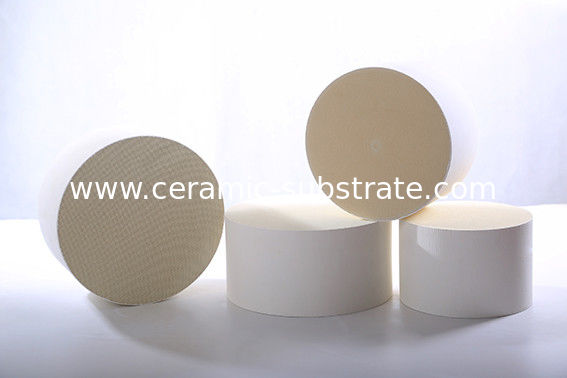

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support
Product Details:
Place of Origin: China.Yixing
Brand Name: China.Yixing
Certification: ISO9001 TS/16949
Payment & Shipping Terms:
Minimum Order Quantity: NO
Packaging Details: Standard export packing
Delivery Time: 5 work days
Payment Terms: T/T, L/C
Supply Ability: 6million liter/year
Contact Now
Detailed Product Description
Cells Density:: 100-400 CPSI Material:: Cordierite
Size:: Customize Color:: White
Name:: Catalyst Substrates|cordierite Substrate|ceramic Honeycomb Shape:: Round
Usage:: 3 Way Catalytic Converters
High Light:

ceramic membrane filter

,

Honeycomb Ceramic Filter



Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support




      1. Product use



After coated with catalysts, this product is applied in catalytic converter of diesel vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of the product in the leading position in domestic, close to or reach the advanced level of similar foreign products.



2.Overall dimensions standards



Item



Standard values



Test method



Wall thinkness

100CPSI

0.45MM±0.03

vernier caliper

200CPSI

0.36MM±0.03

vernier caliper

300CPSI

0.28MM±0.03

vernier caliper

400CPSI

0.21MM ±0.03

vernier caliper

Overall dimensions

OD:<100MM

±1.0MM

vernier caliper

            ≥100MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

       ≥150

±1%Height

vernier caliper

Internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.2%±1%

chemical

analysis

SiO2

50.9%±1%

MgO

13.9%±1%

Cordierite main crystalline phase content

≥90%

X-ray diffraction

Compressive

strength at

room

temperature



AA xis

≥15Mpa

universal material

 testing machine



BB xis

≥2Mpa

CC xis

≥0.15Mpa

water absorption

23-27%

Gravimetric method

softening temperature

 ≥1400℃

high-temperature electric resistance furnace

CTE(800℃)

≤1.5*10-6/℃

thermal dilatometer

thermal shock

resistance

450℃

Three times don't crack

air cooling





Description:



After coated with catalysts, this product is applied in catalytic converter of diesel vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of the product in the leading position in domestic, close to or reach the advanced level of similar foreign products.

Benefits of Products:

   ●The small pressure drop.

   ● Low thermal expansion coefficient

   ● High porosity of hole on the wall , good liquidity and uniform distribution

   ● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

   ● Cold start performance is good, low light-off temperature, high conversion efficiency





Applications:



After coated with catalysts, this product is applied in catalytic converter of gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V. Technical performance of this product has achieved advanced level in China, and it approaches or has already reached the advanced level of similar products abroad.





Specifications



Cell density (CPSI):100~400



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

144(4.66”)

16282

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 0





The height can be designed by customer.

(The standard height):76.2mm(3”), 101.6mm(4”), 127mm(5”),

152.4mm(6”).

2

150

17671

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 1

3

165(6.5”)

21382

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 2

4

170

22698

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 3

5

175

24052

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 4

6

190(7.5”)

28352

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 5

7

210

34636

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 6

8

228(9”)

40828

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 7

9

240(9.5”)

45238

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 8

10

267(10.5”)

55990

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 9

11

286(11.25”)

64242

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 10

12

305(12”)

73061

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 11

13

330(13”)

85529

Diesel SCR Substrate System , Cordierite Honeycomb Ceramic Support 12





REMARK: The SIZE can be designed by customer





Competitive Advantage:



  ●The small pressure drop.

  ● Low thermal expansion coefficient

  ● High porosity of hole on the wall , good liquidity and uniform distribution

  ● High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

  ● Cold start performance is good, low light-off temperature, high conversion efficiency
