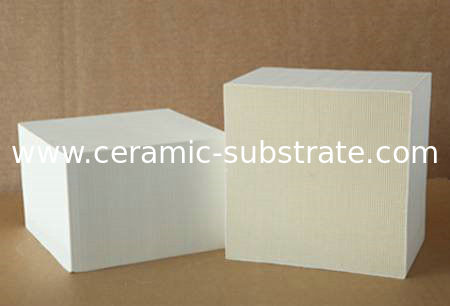

Cellular Cordierite Honeycomb Ceramic

Cellular Cordierite Honeycomb Ceramic

  • High Light

    ceramic honeycomb catalytic converter

    ,

    honeycomb ceramic substrate

  • Cells Density
    7~400 CPSI
  • Material
    Cordierite
  • Size
    Customize
  • Color
    White
  • Name
    Catalyst Supports, Ceramic Honeycomb, Ceramic Substrates
  • Shape
    Squareness
  • Usage
    Car Catalytic Converter
  • Place of Origin
    China.Yixing
  • Brand Name
    Yuxing
  • Certification
    ISO9001 TS/16949
  • Minimum Order Quantity
    NO
  • Packaging Details
    Standard export packing
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    6 million liter/year

Cellular Cordierite Honeycomb Ceramic

Cellular Cordierite Honeycomb Ceramic / Nox Reduction Catalyst for Car





1. Product use

After coated with catalyst, the product is widely applied in organic waste gas purification,

 heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification,

NOx purification system, garbage incineration and harmful gas purification treatment, etc.



2.Overall dimensions standards



Item



Standard values

Allowance

Remark

boundary dimension

length

150MM

±1.5MM



width

150MM

±1.5MM



height

50-100MM

±1.0MM



101-300MM

±1%MM*height



verticality

height

50-100MM

≤1MM



101-300MM

≤1%Height



parallelism

height

50-100MM

≤1MM



101-300MM

≤1%height





Item

Standard

values

Test

methodS



chemical component



Al2O3

35.2%±1%

Chemical titration

 analysis

SiO2

50.9%±1%

MgO

13.9%±1%

Cordierite main crystalline

 phase content

≥90%

X-ray diffraction

RT Mpa

AAxis

≥15 Mpa

universal material

testing machine

BBxis

≥2 Mpa

water absorption

23%-27%

Gravimetric method

softening temperature

≥1320℃

high-temperature electric resistance furnace

CET 800℃

≤1.6*10-6/℃

thermal dilatometer



Description:

After coated with catalyst, the product is widely applied in organic waste gas purification,

heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification,

NOx purification system, garbage incineration and harmful gas purification treatment, etc.


Benefits of Products:

● Large Surface Area

● Low thermal expansion coefficient

● Good thermal shock and thermal shock performance

● Good corrosion resistant performance



Applications:



After coated with catalyst, the product is widely applied in organic waste gas purification,

heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification,

NOx purification system, garbage incineration and harmful gas purification treatment, etc.



Specifications:



7~400  Cell density (CPSI):7~400

Item

(mm)

Sectional Dimension

(mm2)

Area of Section

Shape of Section

(mm)

Height

1

50×50

2500

Cellular Cordierite Honeycomb Ceramic

≤200

The height can be

designed by customer

2

50×50

2500

Cellular Cordierite Honeycomb Ceramic

3

100x100

10000

Cellular Cordierite Honeycomb Ceramic

4

150x150

22500

Cellular Cordierite Honeycomb Ceramic



REMARK: The SIZE can be designed by customer



Competitive Advantage:

● Large Surface Area

● Low thermal expansion coefficient

● Good thermal shock and thermal shock performance

● Good corrosion resistant performance
