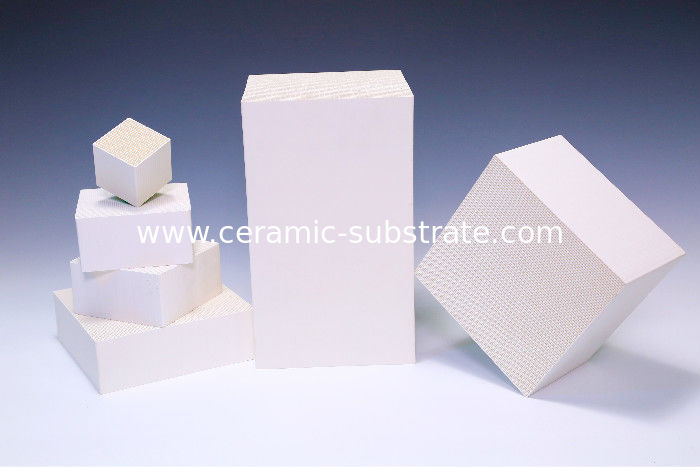

VOC Monolithic Catalyst Support / porous Ceramic Substrate FOR car

Category:
Monolithic Catalyst Support
Payment Method:
T/T, L/C
Specifications
Cells Density:
100-400 CPSI
Material:
Cordierite
Size:
Customize
Name:
Alumina Carrier
Shape:
Square
Usage:
Car Catalytic Converter
High Light:

ceramic catalyst support

,

Ceramic catalyst carrier

,

VOC Monolithic Catalyst Support

Introduction

VOC Honeycomb Ceramic Substrate , porous High Temperature Ceramic





Description:



After coated with catalyst, the product is widely applied in organic waste gas purification, heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification, NOx purification system, garbage incineration and harmful gas purification treatment, etc.

Benefits of Products:

● Large Surface Area

● Low thermal expansion coefficient

● Good thermal shock and thermal shock performance

● Good corrosion resistant performance





1.Product use

After coated with catalyst, the product is widely applied in organic waste gas purification, heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification, NOx purification system, garbage incineration and harmful gas purification treatment, etc.



2.Overall dimensions standards

Item



Standard values

Tolerance

Remark

Overall dimensions

Length

150MM

±1.5MM



Width

150MM

±1.5MM



Height

50-100MM

±1.0MM



101-300MM

±1%MM*height



Perpendicularity

Height

50-100MM

≤1MM



101-300MM

≤1%Height



Parallelism

Height

50-100MM

≤1MM



101-300MM

≤1%height





Item

Standard

values



Test

methodS



chemical component



Al2O3

35.2%±1%

Chemical titration

 analysis

SiO2

50.9%±1%

MgO

13.9%±1%

Cordierite main crystalline

 phase content

≥90%

X-ray diffraction

RT Mpa

AAxis

≥15 Mpa

universal material

testing machine

BBxis

≥2 Mpa

water absorption

23%-27%

Gravimetric method

softening temperature

≥1320℃

high-temperature electric resistance furnace

CET(800℃)

≤1.6*10-6/℃

thermal dilatometer





Applications:



After coated with catalyst, the product is widely applied in organic waste gas purification, heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification, NOx purification system, garbage incineration and harmful gas purification treatment, etc.





Specifications



Cell density (CPSI):7~400



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

50×50

2500

VOC Monolithic Catalyst Support / porous Ceramic Substrate FOR car



The height can be designed by customer

2

50×50

2500

VOC Monolithic Catalyst Support / porous Ceramic Substrate FOR car

3

100x100

10000

VOC Monolithic Catalyst Support / porous Ceramic Substrate FOR car

4

150x150

22500

VOC Monolithic Catalyst Support / porous Ceramic Substrate FOR car






REMARK: The SIZE can be designed by customer





Competitive Advantage:



● Large Surface Area

● Low thermal expansion coefficient

● Good thermal shock and thermal shock performance

● Good corrosion resistant performance
