Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

Category:
Diesel Particulate Filter
Payment Method:
T/T, L/C
Specifications
Cells Density::
100 - 200 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Catalyst Substrates|cordierite Substrate|ceramic Honeycomb
Shape::
Round
Usage::
Car Catalytic Converter
High Light:

ceramic membrane filters

,

ceramic disc filter

,

Car Honeycomb Ceramic Substrates

Introduction

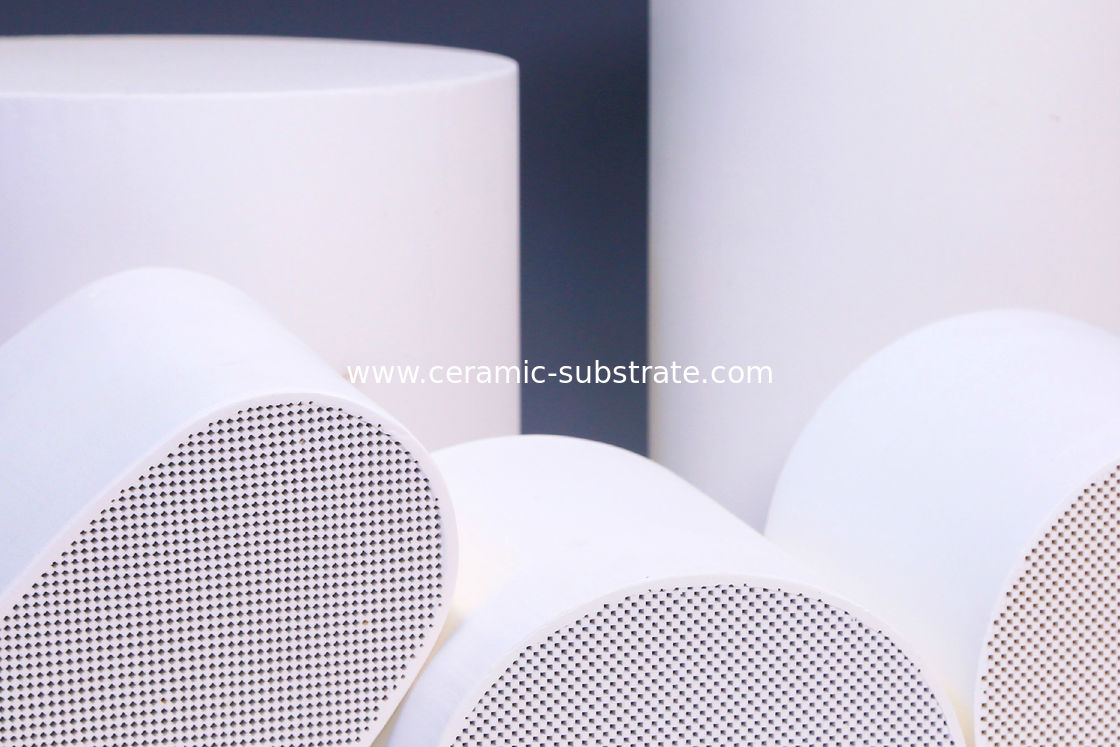

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates


2.   Product use

This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



Overall dimensions standards



Item



Standard  value

Test methods

Wall thinkness

100CPSI

0.46MM±0.04

vernier caliper

200CPSI

0.36MM±0.04

vernier caliper

Overall

dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%height

vernier caliper

hole

density

(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% intact

Bright light perspective

internal crack





Bright light perspective



Physical and chemical properties



Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient





Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





Specifications:



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support



The height can be designed by customer

2

127(5”)

12667

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

3

144(5.66”)

16286

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

4

150(5.9”)

17671

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

5

190(7.5”)

28352

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

6

228(9”)

40828

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

7

240(9.5”)

45238

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

8

267(10.5”)

55990

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

9

286(11.25”)

64242

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

10

305(12”)

73061

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

11

330(13”)

85529

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

12

381(15”)

114009.00

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

13

457(18”)

164029.00

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

14

144.8x81.3

9921.16

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

15

144x116

13366.67

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

16

188x103

16338

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

17

Trapezium 130x100

10530

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

18

203.3x97

17059

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

19

191.8×95.8

14698

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

20

190×134

22160

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

21

145×118

14120

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

22

154.9×127

15771.65

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

23

207.3×101.4

17753.25

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support

24

207.4x100.4

17920

Car Diesel Particulate Filter , Honeycomb Ceramic Substrates , ceramic support





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient
