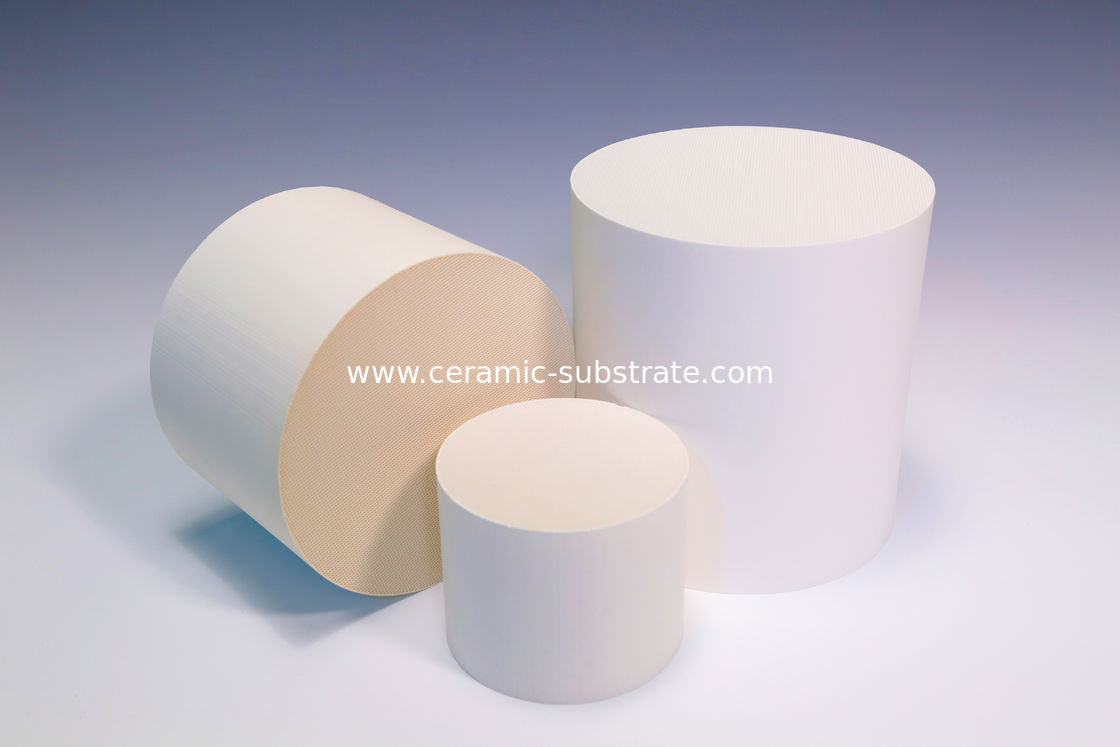

White Cordierite Honeycomb Ceramic Custom For VOC Substrates

Category:
Cordierite Honeycomb Ceramic
Payment Method:
T/T, L/C
Specifications
Cells Density::
7~400 CPSI
Material::
Cordierite
Size::
Customize
Color::
White
Name::
Cordierite Substrate|ceramic Honeycomb|honeycomb Ceramics
Shape::
Squareness
Usage::
Car Catalytic Converter
High Light:

diesel particulate filter

,

honeycomb ceramic substrate

,

White Cordierite Honeycomb Ceramic

Introduction

White Cordierite Honeycomb Ceramic Custom For VOC Substrates




1.Product use

After coated with catalyst, the product is widely applied in organic waste gas purification,

 heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification,

NOx purification system, garbage incineration and harmful gas purification treatment, etc.



2.Overall dimensions standards



Item



Standard values

Allowance

Remark

boundary dimension

length

150MM

±1.5MM



width

150MM

±1.5MM



height

50-100MM

±1.0MM



101-300MM

±1%MM*height



verticality

height

50-100MM

≤1MM



101-300MM

≤1%Height



parallelism

height

50-100MM

≤1MM



101-300MM

≤1%height





Item

Standard

values

Test

methodS



chemical component



Al2O3

35.2%±1%

Chemical titration

 analysis

SiO2

50.9%±1%

MgO

13.9%±1%

Cordierite main crystalline

 phase content

≥90%

X-ray diffraction

RT Mpa

AAxis

≥15 Mpa

universal material

testing machine

BBxis

≥2 Mpa

water absorption

23%-27%

Gravimetric method

softening temperature

≥1320℃

high-temperature electric resistance furnace

CET 800℃

≤1.6*10-6/℃

thermal dilatometer



Description:

After coated with catalyst, the product is widely applied in organic waste gas purification,

heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification,

NOx purification system, garbage incineration and harmful gas purification treatment, etc.


Benefits of Products:

● Large Surface Area

● Low thermal expansion coefficient

● Good thermal shock and thermal shock performance

● Good corrosion resistant performance



Applications:



After coated with catalyst, the product is widely applied in organic waste gas purification,

heat exchange system industrial waste gas treatment, coal-fired power plant flue gas purification,

NOx purification system, garbage incineration and harmful gas purification treatment, etc.



Specifications:



7~400  Cell density (CPSI):7~400

Item

(mm)

Sectional Dimension

(mm2)

Area of Section

Shape of Section

(mm)

Height

1

50×50

2500

White Cordierite Honeycomb Ceramic Custom For VOC Substrates

≤200

The height can be

designed by customer

2

50×50

2500

White Cordierite Honeycomb Ceramic Custom For VOC Substrates

3

100x100

10000

White Cordierite Honeycomb Ceramic Custom For VOC Substrates

4

150x150

22500

White Cordierite Honeycomb Ceramic Custom For VOC Substrates



REMARK: The SIZE can be designed by customer



Competitive Advantage:

● Large Surface Area

● Low thermal expansion coefficient

● Good thermal shock and thermal shock performance

● Good corrosion resistant performance
