DPF Substrate For Diesel Catalytic Converter

DPF Substrate For Diesel Catalytic Converter

  • High Light

    dpf diesel engine

    ,

    diesel exhaust filter

  • Cells Density
    100 - 200 CPSI
  • Material
    Cordierite
  • Size
    Customize
  • Color
    Ivory
  • Name
    Catalyst Substrates, Cordierite Substrate, Ceramic Honeycomb
  • Shape
    Round
  • Usage
    Car Catalytic Converter
  • Place of Origin
    China.Yixing
  • Brand Name
    Yuxing
  • Certification
    ISO9001 TS/16949
  • Minimum Order Quantity
    NO
  • Packaging Details
    Standard export packing
  • Delivery Time
    5 work days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    6million liter/year

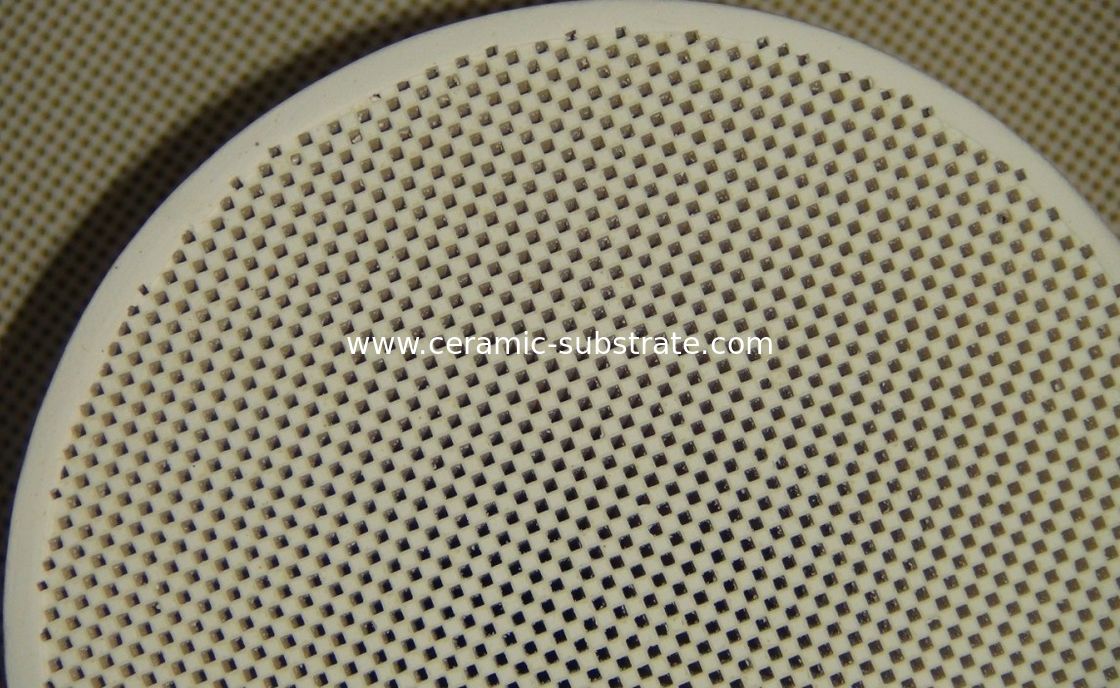

DPF Substrate For Diesel Catalytic Converter


Cordierite Wall Flow Filter / DPF Substrate For Diesel Catalytic Converter



2.    1.Product use

 This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.



2.Overall dimensions standards



Item

 Overall dimensions

standard values



Test method



Wall thinkness

100CSI

0.46MM±0.04

vernier caliper

200CSI

0.36MM±0.04

vernier caliper

Overall dimensions

OD:<120MM

±1.0MM

vernier caliper

            ≥120MM

±1%

vernier caliper

Height:<150

±1.0

vernier caliper

             ≥150

±1%Height

vernier caliper

Hole density(Holes /inch2)

100CSI

100±10

vernier caliper

200CSI

200±10

vernier caliper

Hole sealing integrity

100% Intact

Bright light perspective

Internal crack





Bright light perspective



Physical and chemical properties

Item

Standard value

Test methods

chemical

component



Al2O3

35.4%±1.5%

chemical analysis

SiO2

50.9%±1.5%

MgO

13.5%±1.5%

RT Mpa

≥10.0Mpa

universal material

testing machine



porosity

≥50%

Gravimetric method

Max. working temperature

1400℃

high-temperature electric resistance furnace

CET(800℃)

≤1.2*10-6/℃

thermal dilatometer

The average pore aperture

7~15

Mercury Injection

Apparatus





Description:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.

Benefits of Products:

●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient





Applications:



This product is a kind of special structure and special material of wall flow ceramic honeycomb ceramic filter element, used in the diesel engine exhaust gas purification device, using the hole wall of the pore wall flow filter body, intercept, capture the carbon in the diesel exhaust smoke particles, diesel exhaust gas purification. There are cordierite and silicon carbide material.





Specifications



  Cell density (CPSI):100 and 200



Item

(mm)

Sectional Dimension

(mm2)

Area of Section



Shape of Section

(mm)

Height

1

118.4(4.66”)

11010

DPF Substrate For Diesel Catalytic Converter



The height can be designed by customer

2

127(5”)

12667

DPF Substrate For Diesel Catalytic Converter

3

144(5.66”)

16286

DPF Substrate For Diesel Catalytic Converter

4

150(5.9”)

17671

DPF Substrate For Diesel Catalytic Converter

5

190(7.5”)

28352

DPF Substrate For Diesel Catalytic Converter

6

228(9”)

40828

DPF Substrate For Diesel Catalytic Converter

7

240(9.5”)

45238

DPF Substrate For Diesel Catalytic Converter

8

267(10.5”)

55990

DPF Substrate For Diesel Catalytic Converter

9

286(11.25”)

64242

DPF Substrate For Diesel Catalytic Converter

10

305(12”)

73061

DPF Substrate For Diesel Catalytic Converter

11

330(13”)

85529

DPF Substrate For Diesel Catalytic Converter

12

381(15”)

114009.00

DPF Substrate For Diesel Catalytic Converter

13

457(18”)

164029.00

DPF Substrate For Diesel Catalytic Converter

14

144.8x81.3

9921.16

DPF Substrate For Diesel Catalytic Converter

15

144x116

13366.67

DPF Substrate For Diesel Catalytic Converter

16

188x103

16338

DPF Substrate For Diesel Catalytic Converter

17

Trapezium 130x100

10530

DPF Substrate For Diesel Catalytic Converter

18

203.3x97

17059

DPF Substrate For Diesel Catalytic Converter

19

191.8×95.8

14698

DPF Substrate For Diesel Catalytic Converter

20

190×134

22160

DPF Substrate For Diesel Catalytic Converter

21

145×118

14120

DPF Substrate For Diesel Catalytic Converter

22

154.9×127

15771.65

DPF Substrate For Diesel Catalytic Converter

23

207.3×101.4

17753.25

DPF Substrate For Diesel Catalytic Converter

24

207.4x100.4

17920

DPF Substrate For Diesel Catalytic Converter





REMARK: The SIZE can be designed by customer





Competitive Advantage:



●High porosity of hole on the wall of high porosity, good liquidity and uniform distribution

●High temperature resistance, chemical corrosion resistance, thermal shock resistance and thermal shock resistance is strong

●The pressure drop is small

●High filtration efficiency, able to adapt to all kinds of regeneration

   ● Low thermal expansion coefficient
